First manned spacecraft. Derivatives were still in use over thirty years later, for military photo-reconnaissance, earth resources, mapping, and biological missions.
In the spring of 1957 Tikhonravov began study of a manned orbital spacecraft. The April 1958 preliminary design indicated a mass of 5.0 to 5.5 tonnes, 8 to 9 G re-entry, spherical capsule, 2500 to 3500 deg C re-entry temperatures. The heat shield would weigh 1300 to 1500 kg, and the landing accuracy would be 100 to 170 km. Operating altitude was 250 km. The astronaut would eject from the spacecraft at an altitude of 8 to 10 km.
Construction drawings were issued beginning in the fall of 1958. From the end of 1960 six unmanned Vostok variants were launched, followed by six crewed missions.
The Vostok crew accommodation was for one cosmonaut, in a spacesuit, equipped with an ejection seat for launch aborts and for landing on the earth. The spacecraft had two windows: one above the cosmonaut's head in the entry hatch, one at his feet, equipped with the Vzor optical device for orientation of the spacecraft. Attitude control was by cold gas thrusters for on-orbit orientation; passive control for the capsule during re-entry. A single parachute allowed recovery of the capsule. There was no soft-landing system; the pilot ejected for a separate landing under his own parachute.
The Vostok and Voskhod spacecraft, like the US Mercury, could not perform orbital manoeuvres - they could only be translated around their axes. The main engine was not restartable and was used only at the end of the mission for the re-entry braking manoeuvre.
In the spring of 1957 Korolev organised project section 9, with Tikhonravov at its chief, to design new spacecraft. Simultaneous with this they were building the first earth satellites - the PS-1, PS-2 and Object D (which would be Sputniks 1, 2, and 3). By April they had completed a research plan to build a piloted spacecraft and an unmanned lunar probe, using the R-7 as the basis for the launch vehicle. Studies indicated that the R-7 with a third stage could lift 5 tonnes into low earth orbit.
The manned spacecraft work led them into new fields of research in re-entry, thermal protection, and hypersonic aerodynamics. The initial study material was reviewed by mathematicians at the Academy of Science. It was found that a maximum of 10 G's would result in a ballistic re-entry from earth obit. From September 1957 to January 1958 Tikhonravov's section examined heating conditions, surface temperatures, heat shield materials, and obtainable maximum payloads for a wide range of aerodynamic forms with hypersonic lift to drag ratios ranging from zero to a few points. Parametric trajectory calculations were made using successive approximations on the BESM-1 electromechanical computer.
It was found that the equilibrium temperatures for winged spacecraft with the highest L/D ratios exceeded the capability of available heat resistant alloy construction methods. These designs also had the lowest net payloads. The final conclusion was:
The necessity to refine and qualify the lifting design seemed a major impediment to meeting a quick program schedule. Then in April 1958 aviation medicine research using human subjects in a centrifuge showed that pilots could endure up to 10 G's without ill effects. This allowed a pure ballistic design, removing a major stumbling block, and allowing the study to move quickly to the advanced project stage. Detailed design of the spacecraft layout, structures, equipment, and materials were all done in parallel. This required everything to be redesigned 2 to 3 times, but resulted in a quick final design. The advance project was completed by the middle of August 1958. Konstantin Feoktistov was one of the leading enthusiasts in this effort.
 | Vostok Moscow 1981 Credit: © Mark Wade. 48,907 bytes. 375 x 547 pixels. |
Redundancy of all systems became a new strategic design principle for this first manned spacecraft. The final report 'Material on the research question of a manned Sputnik' (OD-2) gave the following flight characteristics:
Redundancy features for manned flight included:

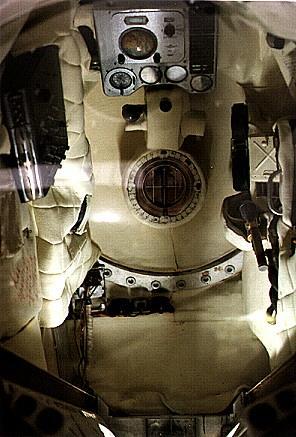

 | Vostok Interior Credit: © Mark Wade. 30,878 bytes. 296 x 437 pixels. |
In June 1958 the principal findings were already in and Korolev took personal management of the project. A section devoted to the spacecraft was formed on 15 August 1958. A last look at the headlight-shaped lifting capsule was made. It had the potential of cutting the mass of the heat shield in half, but there was simply no time to do the research on the flight characteristics of such a design. The final project was signed by Korolev on 15 September 1958. This allowed for full production drawing release to the fabrication shops and the beginning of tests of the spacecraft systems.
Due to a bitter fight with the military over the nature and priority of the manned spacecraft and photo-reconnaissance space programs, the final decree for the Vostok was not issued until 22 May 1959. This authorised production of a single design that could be used either as a manned spacecraft or as a military reconnaissance satellite.
Altogether 123 organisations and 36 factories participated in the project. The leading members of the industrial team that built the Vostok included:

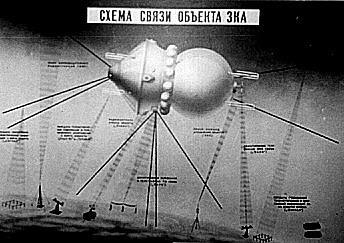

 | Vostok commu system - Vostok communications systems schematic Credit: © Mark Wade. 22,475 bytes. 344 x 243 pixels. |
The detailed mass breakdown of the 3KA manned flight version was as follows:

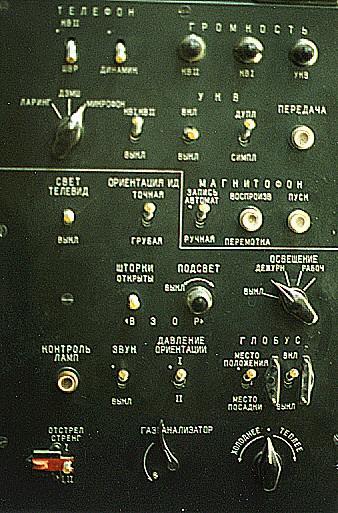

 | Vostok control panel Credit: © Mark Wade. 51,723 bytes. 338 x 513 pixels. |
The automatic solar orientation system consisted of solar sensors, DUS-L2 angle of flight sensors, and an SRB analogue computer unit. The TDU would only fire if the sun sensors - consisting of a slit arranged over three photocells - indicated correct orientation. The DUS-L2 angle of flight sensor utilised two-step double gyroscopes with mechanically opposed directions. The SRB used these inputs and generated impulses to carry out the burn.
The cosmonaut could also take manual control of the spacecraft and manually re-enter. This was done by using the ingenious Vzor periscope device mounted on the floor of the cabin. This had a central view and eight ports arranged in a circle around the center. When the spacecraft was perfectly centered in respect to the horizon, all eight of the ports would be lit up. Alignment along the orbit was judged by getting lines on the main scope to be aligned with the landscape flowing by below. In this way, the spacecraft could be oriented correctly for the re-entry manoeuvre. This manual system would obviously only be used during daylight portions of the orbit. At night the dark mass of the earth could not have been lined up with the optical Vzor device. The automatic system would work day or night.
10 minutes after TDU cut-off after the retrofire burn the PO separated from the KA.
1960 was a year of intense testing. In test rigs the hatch seal was tested 50 times, spacecraft separation from the last rocket stage 15 times, SA/PO separation 5 times, and separation of the retaining straps form the SA 16 times. The SA capsule was dropped from an An-12 aircraft at 9 to 12 km to test the parachute and ejection seat systems. The life support system was tested at altitude in a Tu-104 aircraft and in thermal chambers. The ejection seat was tested from 4 km to the altitude of cut-off of the first stage of the Vostok rocket, simulating cosmonaut escape during launch vehicle aborts. Seven spacecraft were built for flight tests. Korolev personally hand-picked the equipment to be used on these spacecraft.
 | Vostok Credit: © Mark Wade. 1,273 bytes. 170 x 144 pixels. |
The official draft project for the 3KA manned spacecraft was not completed until the end of July 1961, long after the first flight of the actual spacecraft.
The Vostok and Voskhod spacecraft, like the U.S. Mercury, could not perform orbital manoeuvres - they could only be translated around their axes. The main engine was used only at the end of the mission for the re-entry braking manoeuvre. However Korolev, before being authorised to proceed with development of the Soyuz, did study the Vostok Zh. This would have been a manoeuvrable Vostok that would have made repetitive dockings with propulsion modules - a method of achieving a circumlunar mission using only the Soyuz booster. Later on manoeuvrable versions of the Vostok were developed as Zenit reconnaissance satellites.
The Vostok could not be used for circumlunar missions or earth missions with non-astronaut qaulified crew due to the 'Sharik' reentry vehicle design. The spherical design itself was ingenious - it has no manoeuvring engines to orient it, since it is like a ball with the heavy weight concentrated at one end - if you throw it in the air (or re-enter the atmosphere with it ) it will automatically swing around with the heavy end downward. The only problem is that it is only capable of a purely ballistic re-entry, which means 8 G's for the occupant from earth orbit and 20 G's from the moon. Mercury was ballistic, but Gemini, Apollo, and Soyuz all had the center of gravity offset, so they could produce lift, lower the G forces, and manoeuvre somewhat to vary the landing point. This reduced G's to 3 G for earth orbit returns and 8 G's for lunar returns.
 | Vostok spacecraft - Vostok spacecraft view 2 Credit: © Mark Wade. 42,740 bytes. 370 x 582 pixels. |
Craft.Crew Size: 1. Design Life: 10 days. Orbital Storage: 30.00 days. Total Length: 4.4 m. Maximum Diameter: 2.4 m. Total Mass: 4,730 kg. Total Propellants: 275 kg. Primary Engine Thrust: 1,614 kgf. Main Engine Propellants: Nitrous oxide/amine. Main Engine Isp: 266 sec. Total spacecraft delta v: 155 m/s. Electrical System: Batteries.
First studies by Korolev and Feoktistov of manned spacecraft. The first stage would be suborbital ballistic flights (like the US Mercury-Redstone flights) from Kapustin Yar using IRBM's. First flights not planned until 1964 - 1967.
In the spring of 1957 Korolev organised project section 9, with Tikhonravov at its chief, to design new spacecraft. By April they had completed a research plan to build a piloted spacecraft and an unmanned lunar probe, using the R-7 as the basis for the launch vehicle.

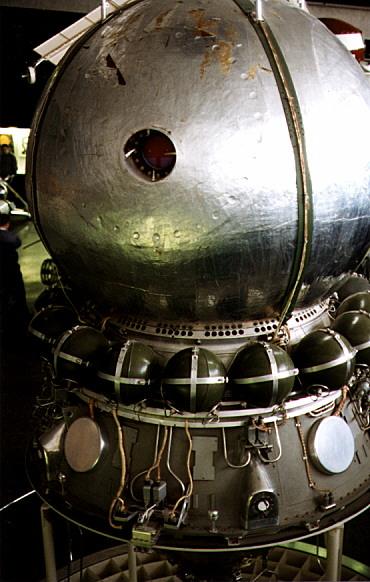

 | Vostok closeup - Closeup view of Vostok spacecraft Credit: © Mark Wade. 36,706 bytes. 563 x 393 pixels. |
The preliminary design indicated a mass of 5.0 to 5.5 tonnes, 8 to 9 G re-entry, spherical capsule, 2500 to 3500 deg C re-entry temperatures. The heat shield would weigh 1300 to 1500 kg, and the landing accuracy would be 100 to 170 km. Operating altitude was 250 km. The astronaut would eject from the spacecraft at an altitude of 8 to 10 km.
Decision to move directly to early manned flights in orbit. Korolev, after a review with engineers, determines that planned three stage versions of the R-7 ICBM could launch a manned orbital spacecraft. Korolev advocates pursuit of manned spaceflight at the expense of the military's Zenit reconnsat program, putting him in opposition to Ustinov.
First explanation to leadership of advantages of manned spaceflight.
A section devoted to the spacecraft was formed on 15 August 1958. Konstantin Feoktistov was one of the leading enthusiasts in this effort.
Construction drawings for the Vostok manned spacecraft were issued beginning in the fall of 1958. Official go-ahead was still nearly a year in the future.
This allowed for full production drawing release to the fabrication shops and the beginning of tests of the spacecraft systems.
 | Vostok LV - Liftoff of Vostok 1 on the first manned spaceflight. Credit: RKK Energia. 12,872 bytes. 314 x 230 pixels. |
Due to a bitter fight with the military over the nature and priority of the manned spacecraft and photo-reconnaissance space programs, the final decree for the Vostok manned spacecraft was delayed until seven months after drawing release began. This authorised production of a single design that could be used either as a manned spacecraft or as a military reconnaissance satellite. These were the Zenit-2 and Zenit-4 spacecraft based on the Vostok design. This marked the end of the original Zenit configuration.
Decree 'On plan to launch the first human in space on Vostok' was issued.
Carried dog Chernushka, mannequin Ivan Ivanovich, and other biological specimens. Ivanovich was ejected from the capsule and recovered by parachute, and Chernsuhka was successfully recovered with the capsule on March 9, 1961 8:10 GMT.
Officially: Development of the design of the space ship satellite and of the systems on board, which ensure necessary conditions for man's flight.

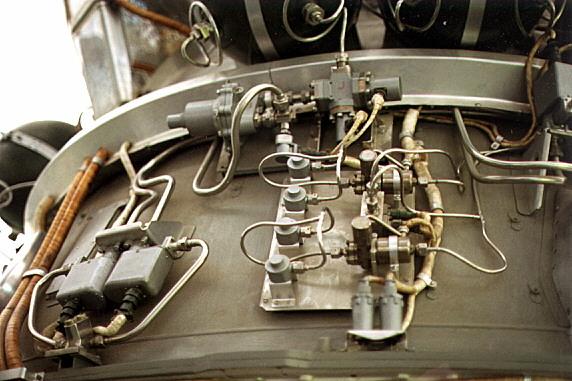

 | Vostok Kaluga Museum Credit: © Mark Wade. 43,450 bytes. 567 x 310 pixels. |
Carried dog Zvezdochka and mannequin Ivan Ivanovich. Ivanovich was again ejected from the capsule and recovered by parachute, and Zvezdochka was successfully recovered with the capsule on March 25, 1961 7:40 GMT.
Officially: Development of the design of the space ship satellite and of the systems on board, designed to ensure man's life functions during flight in outer space and return to Earth.
Decree 'On approval for launch of Vostok' was issued.
First manned spaceflight, one orbit of the earth. 11 April 1961 was a 'reserve' day in the launch plan, but it was not needed. All the Chief Designers and Military Space chiefs were at the cosmodrome. Gagarin spent that day in meetings with the prominent personalities.
Three press releases were prepared, one for success, two for failures. It was only known ten minutes after burnout, 25 minutes after launch, if a stable orbit had been achieved.
The payload included life-support equipment and radio and television to relay information on the condition of the pilot. The flight was automated; Gagarin's controls were locked to prevent him from taking control of the ship. A key was available in a sealed envelope in case it became necessary to take control in an emergency. After retrofire, the service module remained attached to the Sharik reentry sphere by a wire bundle. The joined craft went through wild gyrations at the beginning of reentry, before the wires burned through. The Sharik, as it was designed to do, then naturally reached aerodynamic equilibrium with the reentry shield positioned correctly.

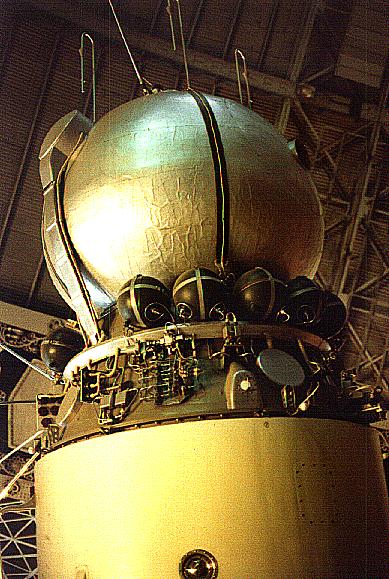

 | Vostok1 Credit: © Mark Wade. 69,114 bytes. 389 x 579 pixels. |
Second manned orbital flight. The Soviet Union successfully launched Vostok II into orbit with Gherman S. Titov as pilot. The spacecraft carried life-support equipment, radio and television for monitoring the condition of the cosmonaut, tape recorder, telemetry system, biological experiments, and automatic and manual control equipment. After 17.5 orbits, the spacecraft reentered on August 7 and landed safely at 7:18 GMT near Krasny Kut, Saratov. Titov made a separate parachute landing in an ejector couch. Flight objectives: Investigation of the effects on the human organism of a prolonged flight in orbit and subsequent return to the surface of the Earth; investigation of man's ability to work during a prolonged period of weightlessness. Titov took manual control of spacecraft but suffered from space sickness. He was equipped with a professional quality Konvas movie camera, with which ten minutes of film of the earth were taken through the porthole. Both television and film images were taken of the interior of the spacecraft. Like Gagarin, Titov experienced problems with separation of the service module after retrofire. Titov was never to fly again, after being assigned to the Spiral spaceplane, which turned out to be a dead-end project. A biography of him by Martin Caidin ('I Am Eagle') made him somewhat more accessible than Gagarin to the West.
 | Vostok variant - Vostok variant with long boom and unidentified second spacecraft - earth orbit or circumlunar docking vehicles? Credit: © Mark Wade. 14,976 bytes. 387 x 243 pixels. |
Joint flight with Vostok 4. The first such flight, where Vostok capsules were launched one day apart, coming within a few kilometers of each other at the orbital insertion of the second spacecraft. The flight was supposed to occur in March, but following various delays, one of the two Vostok pads was damaged in the explosion of the booster of the third Zenit-2 reconnsat in May. Repairs were not completed until August. Vostok 3 studied man's ability to function under conditions of weightlessness; conducted scientific observations; furthered improvement of space ship systems, communications, guidance and landing. Immediately at orbital insertion of Vostok 4, the spacecraft were less than 5 km apart. Popovich made radio contact with Cosmonaut Nikolayev. Nikolayev reported shortly thereafter that he had sighted Vostok 4. Since the Vostok had no maneuvering capability, they could not rendezvous or dock, and quickly drifted apart. The launches did allow Korolev to offer something new and different, and gave the launch and ground control crews practice in launching and handling more than one manned spacecraft at a time. The cosmonaut took colour motion pictures of the earth and the cabin interior. Recovered August 15, 1962 6:52 GMT. Landed 48:02N 75:45 E.

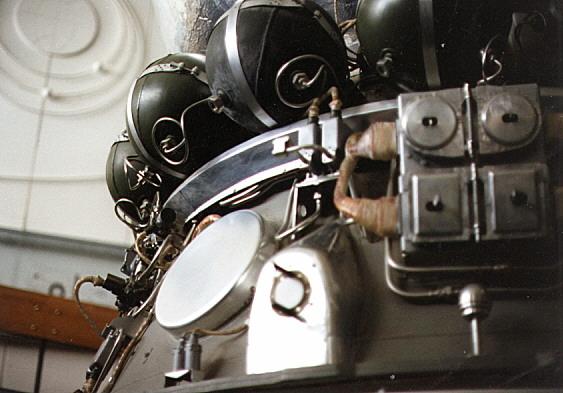

 | Vostok closeup - Closeup view of Vostok spacecraft Credit: © Mark Wade. 45,679 bytes. 572 x 381 pixels. |
Despite the conditions, Popovich felt able to go for the full four days scheduled. But before the mission, Popovich had been briefed to tell ground control that he was 'observing thunderstorms' if he felt the motion sickness that had plagued Titov and needed to return on the next opportunity. Unfortunately he actually did report seeing thunderstorms over the Gulf of Mexico, and ground control took this as a request for an early return. He was ordered down a day early, landing within a few mintutes of Nikolayev. Only on the ground was it discovered that he was willing to go the full duration, and that ground control had thought he had given the code. Recovered August 15, 1962 6:59 GMT. Landed 48:09 N 71:51 E.
Joint flight with Vostok 6. The Soviet Union launched Vostok 5, piloted by Lt. Col. Valery F. Bykovsky. Two days later Lt. Valentina V. Tereshkova, the first spacewoman, followed in Vostok 6. On its first orbit, Vostok 6 came within about five km of Vostok 5, the closest distance achieved during the flight, and established radio contact. Both cosmonauts landed safely on June 19. The space spectacular featured television coverage of Bykovsky that was viewed in the West as well as in Russia. Unlike earlier missions, only a black and white film camera was carried. Photometric measurements of the earth's horizon were made.
Mission objectives were officially: further study of the effect of various space-flight factors in the human organism; extensive medico-biological experiments under conditions of prolonged flight; further elaboration and improvement of spaceship systems.
Vostok 5 was originally planned to go for a record eight days. The launch was delayed repeatedly due to high solar activity and technical problems. Finally the spacecraft ended up in a lower than planned orbit. Combined with increased atmospheric activity due to solar levels, Vostok 5 quickly decayed temperatures in the service module reached very high levels.
Bykovsky also experienced an unspecified problem with his waste management system (a spill?) which made conditions in the cabin 'very uncomfortable'. He was finally ordered to return after only five days in space.
To top it all off, once again the Vostok service module failed to separate cleanly from the reentry sphere. Wild gyrations ensued until the heat of reentry burned through the non-separating retraining strap. Recovered June 19, 1963 11:06 GMT. Landed 53:24 N 67:37 E.
Joint flight with Vostok 5. First woman in space, and the only Russian woman to go into space until Svetlana Savitskaya 19 years later. On its first orbit, Vostok 6 came within about five km of Vostok 5, the closest distance achieved during the flight, and established radio contact. Flight objectives included: Comparative analysis of the effect of various space-flight factors on the male and female organisms; medico-biological research; further elaboration and improvement of spaceship systems under conditions of joint flight. It was Korolev's idea just after Gagarin's flight to put a woman into space as yet another novelty. Khrushchev made the final crew selection. Korolev was unhappy with Tereshkova's performance in orbit and she was not permitted to take manual control of the spacecraft as had been planned. Recovered June 19, 1963 8:20 GMT. Landed 53:16 N 80:27 E.
Korolev proposed further manned Vostok flights after Vostok 6. The first was to be a high altitude flight into the lower Van Allen radiation belt for radiological-biological studies. Spacecraft would have been allowed to naturally decay to a re-entry after ten days. A training group for these flights was assigned on 17 September 1963: Belyayev, Gorbatko, Khrunov, Komarov, Leonov, Shonin, Volynov, and Zaikin. By 25 January 1964 this had changed to Belyayev, Beregovoi, Khrunov, Komarov, Leonov, and Volynov. All follow-on Vostok missions were cancelled in spring 1964 when the decision was made to proceed with conversion of Vostok to the multi-crew Voskhod configuration.
Proposed second high altitude manned flight into the lower Van Allen radiation belt for radiological-biological studies. Spacecraft would have been allowed to naturally decay to a re-entry after ten days. All follow-on Vostok missions cancelled in Spring 1964.
Proposed high altitude manned Vostok flight for extended scientific studies. Spacecraft would have been allowed to naturally decay to a re-entry after ten days. Purposes of these flights were to be: geophysical and astronomical research; photography of the solar corona; solar x-ray imagery; medical-biological research; detailed study of the effects of weightlessness on the human organism; dosimetry; and engineering tests of ion flow sensors to be used for orientation of later Soyuz spacecraft. All follow-on Vostok missions cancelled in Spring 1964.
Proposed high altitude manned Vostok flight for extended scientific studies. Spacecraft would have been allowed to naturally decay to a re-entry after ten days. Purposes of these flights were to be: geophysical and astronomical research; photography of the solar corona; solar x-ray imagery; medical-biological research; detailed study of the effects of weightlessness on the human organism; dosimetry; and engineering tests of ion flow sensors to be used for orientation of later Soyuz spacecraft. All follow-on Vostok missions cancelled in Spring 1964.
Proposed Vostok flight to conduct extra-vehicular activity tests. The Vostok would be modified by having the ejection seat removed and an airlock built into the spacecraft. A braking rocket carried in the parachute lines would provide a soft landing (as was later used on Voskhod). The single cosmonaut would have conducted the first spacewalk in 1965. All follow-on Vostok missions cancelled in Spring 1964.
Proposed Vostok flight to conduct extra-vehicular activity tests. The Vostok would be modified by having the ejection seat removed and an airlock built into the spacecraft. All follow-on Vostok missions cancelled in Spring 1964.
Soviet life-support systems used in Vostok and Voskhod spacecraft appeared to use a sodium superoxide compound as a source of oxygen, A. W. Petrocelli, General Dynamics Corporation, told Missiles and Rockets. Petrocelli estimated the Russians had published three times more basic research papers than U.S. scientists on these materials and were continuing efforts to improve life-support systems by studying compounds such as new superoxides, peroxides, and ozonides. He also said they were searching for better carbon dioxide absorbers.
Proposed high altitude manned Vostok flight for extended scientific studies. Spacecraft would have been allowed to naturally decay to a re-entry after ten days. Purposes of these flights were to be: geophysical and astronomical research; photography of the solar corona; solar x-ray imagery; medical-biological research; detailed study of the effects of weightlessness on the human organism; dosimetry; and engineering tests of ion flow sensors to be used for orientation of later Soyuz spacecraft. All follow-on Vostok missions cancelled in Spring 1964.
