This four stage version of the Proton was originally designed to send manned circumlunar spacecraft into translunar trajectory. Guidance to the Block D stage must be supplied by spacecraft. The design was proposed on 8 September 1965 by Korolev as an alternate to Chelomei's LK-1 circumlunar mission. It combined the Proton 8K82K booster for the LK-1 with the N1 lunar Block D stage to boost a stripped-down Soyuz 7K-L1 spacecraft around the moon. The Korolev design was selected, and first flight came on 10 March 1967. The crash lunar program lead to a poor launch record. Following a protracted ten year test period, the booster finally reached level of launch reliability comparable to that of other world launch vehicles.
Development of a three-stage version of the UR-500 was authorised in the decree of 3 August 1964. Decrees of 12 October and 11 November 1964 authorised development of the Almaz manned military space station and the manned circumlunar spacecraft LK-1 as payloads for the UR-500K. However at the same time Khrushchev was ousted from power. Chelomei lost his chief patron and his projects came under negative scrutiny by the new leadership.
On 8 September 1965 Korolev presented an several schemes for using Chelomei�s UR-500 to fly around the moon. One alternate was a two-part spaceship, using the Proton with the upper stage Block D from Korolev�s N1-L3 lunar project. This would launch Korolev�s 7K-L1 spacecraft (derived from the 7K-OK Soyuz) onto a translunar trajectory. This project received the name UR-500K-L1, and was adopted in place of Chelomei�s LK-1 circumlunar project. It required construction of 18 UR-500K rockets, which, in a combination flight-test and government trials program, would send L1 spacecraft around the moon, at first unmanned, then manned.
By 4 October 1966 a dummy rocket was mounted at the launch site. The dummy was loaded with imitation propellants (kerosene as fuel and water/ethyl alcohol as oxidiser). The nitrogen tetroxide oxidiser had to be kept above -11 degrees C, and it was originally planned for a thermostatically-controlled electrical heating of the tank walls to achieve this. It was ultimately decided that the risk of explosion of such a system was too great, and the system was abandoned.
The first flight rocket (serial number 22701) began assembly on 21 November 1966, with mechanical assembly completed by 29 November. Electrical connections and tests were completed by 4 December 1966. Due to New Year�s holidays work did not resume until 28 January 1967. By 28 February the fully assembled booster / spacecraft unit was completed in the MIK, including the 7K-L1P boilerplate spacecraft. The launch tower was added on 2 March 1967 and the system was declared ready for launch. A serious potential problem during preparations was the discovery that fuel gases could lead to pump cavitation at the turbine exits. Tests on the ground showed that the problem was not the fuel itself, but in the monitoring equipment.
Although the first launch of the UR-500K-L1 on 10 March was successful, the record for the balance of the manned circumlunar project was dismal. Of the remaining 11 launches of the project, only that of Zond-7 was recognised as fully successful. In 60% of the failures the fault was in the launch vehicle; in 20% the Block D; and in 20% the spacecraft. Therefore the probability of successfully carrying out the objective of the project - safely flying a cosmonaut around the moon and returning him to earth - was only 9%.
Remarkably, due to continuing failures, the 8K82K did not satisfactorily complete its state trials until its 61st launch (Salyut 6 / serial number 29501 / 29 September 1977). Thereafter it reached a level of launch reliability comparable to that of other world launch vehicles.
Launches: 39. Failures: 16. Success Rate: 58.97% pct. First Launch Date: 10 March 1967. Last Launch Date: 16 October 1975. Payload: 5,390 kg. to a: translunar trajectory. Liftoff Thrust: 902,100 kgf. Total Mass: 707,170 kg. Core Diameter: 4.2 m. Total Length: 57.0 m. Launch Price $: 70.00 million. in 1994 price dollars.

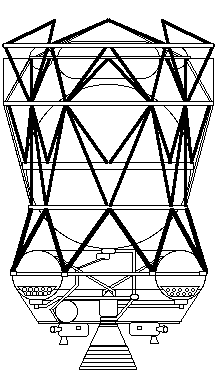

![]() | Proton 8K82K/11S824 - Proton 8K82K / 11S824 Block D launch vehicle - cutaway drawing showing arrangement of N2O4 oxidiser tanks (green) and UDMH fuel tanks (orange) in Proton, and Liquid oxygen (blue) and kerosene (pink) tanks in the Block D stage. The Soyuz 7K-L1 spacecraft was mounted directly above the Block D liquid oxygen tank. For the Soyuz circumlunar flights a launch escape tower was fitted that pulled the capsule away in an emergency. Credit: © Mark Wade. 7,453 bytes. 60 x 469 pixels. |
The design was proposed by Korolev as an alternate to Chelomei's LK-1 circumlunar mission. It combined the Proton 8K82K booster for the LK-1 with the N1 lunar Block D stage to boost a stripped-down Soyuz 7K-L1 spacecraft around the moon.
Central Committee of the Communist Party and Council of Soviet Ministers Decree 'On the Concentration of Forces of Industrial Design Organisations for the Creation of Rocket-Space Complex Means for Circling the Moon--work on the UR-500K-L1 program' was issued. As a result of a presentation to the Military Industrial Commission, Afanasyev backed Korolev in wresting control of the manned circumlunar project from Chelomei. The Chelomei LK-1 circumlunar spacecraft was cancelled. In its place, Korolev would use a derivative of the Soyuz 7K-OK, the 7K-L1, launched by Chelomei�s UR-500K, but with a Block D translunar injection stage from the N1. He envisioned launch of the unmanned 7K-L1 into low earth orbit, followed by launch and docking of a 7K-OK with the 7K-L1. The crew would then transfer to the L1, which would then be boosted toward the moon. This was the original reason for the development of the 7K-OK.
A dummy 8K82K/Block D rocket was mounted at the launch site. The dummy was loaded with imitation propellants (kerosene as fuel and water/ethyl alcohol as oxidiser). The nitrogen tetroxide oxidiser had to be kept above -11 degrees C, and it was originally planned for a thermostatically-controlled electrical heating of the tank walls to achieve this. It was ultimately decided that the risk of explosion of such a system was too great, and the system was abandoned.
Decree 'On lag of work on the N1-L3 and UR-500K-L1 programs' was issued.
The first flight rocket (serial number 22701) began assembly on 21 November 1966, with mechanical assembly completed by 29 November. Electrical connections and tests were completed by 4 December 1966. Due to New Year�s holidays work did not resume until 28 January 1967. By 28 February the fully assembled booster / spacecraft unit was completed in the MIK, including the 7K-L1P boilerplate spacecraft.
Central Committee of the Communist Party and Council of Soviet Ministers Decree 115-46 'On the Progress of the Work on the Development of the UR500K-L1 --confirmation of schedule for piloted lunar missions' was issued.
![]() | Block D Credit: © Mark Wade. 5,136 bytes. 222 x 370 pixels. |
Protoype Soyuz 7K-L1P launched by Proton into planned highly elliptical earth orbit. The first flight four-stage Proton rocket began assembly on 21 November 1966, with mechanical assembly completed by 29 November. Electrical connections and tests were completed by 4 December 1966. Due to New Year�s holidays work did not resume until 28 January 1967. By 28 February the fully assembled booster / spacecraft unit was completed in the MIK, including the 7K-L1P boilerplate spacecraft. The launch tower was added on 2 March 1967 and the system was declared ready for launch. A serious potential problem during preparations was the discovery that fuel gases could lead to pump cavitation at the turbine exits. Tests on the ground showed that the problem was not the fuel itself, but in the monitoring equipment. The launch vehicle and Block D stage functioned correctly and put the spacecraft into a translunar trajectory. The spacecraft was not aimed at the moon, did not have a heat shield for reentry, and no recovery of was planned or attempted. A successful launch that created false confidence just before the string of failures that would follow.
Protoype Soyuz 7K-L1 manned circumlunar spacecraft. Reached earth orbit but Block D translunar injection stage failed to fire (ullage rockets, which had to fire to settle propellants in tanks before main engine fired, were jettisoned prematurely). Spacecraft burned up two days later when orbit decayed.
First attempted circumlunar flight. The booster crashed 65 km from the pad, but the launch escape system functioned correctly and the spacecraft was recovered.
Second attempted circumlunar flight. Four seconds after second stage ignition the booster went out of control. The launch escape system shut down the engines and the escape tower pulled the spacecraft away from the booster. The Proton crashed 300 km from the pad and the Soyuz was recovered 80 km southwest of Dzhezkazgan.
![]() | Universal Rockets - Chelomei's Universal Rocket Family. From left to right: UR-200. Original UR-500 configuration, composed of clustered UR-200's. Conventional UR-500 monoblock configuration. Selected UR-500 polyblock configuration. UR-500 two-stage configuration as flown. UR-500K configuration with Block D upper stage. Credit: © Mark Wade. 36,031 bytes. 630 x 351 pixels. |
Spacecraft successfully launched into 330,000 km apogee orbit 180 degrees away from the moon. On reentry, the guidance system failed, and the planned double skip maneuver to bring the descent module to a landing in the Soviet Union was not possible. Ustinov ordered the self-destruct package to be set off and the capsule blew up 12 km above the Gulf of Guinea. Kamanin disagreed strongly with this decision; the spacecraft could have still been recovered in the secondary area by Soviet naval vessels after a 20 G reentry. The decsion was made to recover the spacecraft in the future whenever possible.
Officially: Solar Orbit (Heliocentric). Study of remote regions of circumterrestrial space, development of new on-board systems and units of space stations.
A short circuit in the malfunction detection system led the launch escape system to believe incorrecly that a launch vehicle failure had occurred. It commanded shut down of the second stage engines 260 seconds in the flight, and the escape tower pulled the Zond away from the booster, for a safe recovery.
First successful circumlunar flight with recovery. Test flight of manned spacecraft; launched from an earth parking orbit to make a lunar flyby and return to earth. On September 18, 1968, the spacecraft flew around the moon at an altitude of 1950 km. High quality photographs of the earth were taken at a distance of 90,000 km. A biological payload of turtles, wine flies, meal worms, plants, seeds, bacteria, and other living matter was included in the flight. Before re-entry the gyroscopic platform went off line due to ground operator failure. However this time the self destruct command was not given. After a ballistic 20G re-entry the capsule splashed down in the Indian Ocean at 32:63 S, 65:55 E on September 21, 1968 16:08 GMT. Soviet naval vessels were 100 km from the landing location and recovered the spacecraft the next day, shipping it via Bombay back to Soviet Union.
Test flight of manned circumlunar spacecraft. Successfully launched towards the moon with a scientific payload including cosmic-ray and micrometeoroid detectors, photography equipment, and a biological specimens. A midcourse correction on 12 November resulted in a loop around the moon at an altitude of 2,420 km on 14 November. Zond 6 took spectacular photos of the moon�s limb with the earth in the background. Photographs were also taken of the lunar near and far side with panchromatic film from distances of approximately 11,000 km and 3300 km. Each photo was 12.70 by 17.78 cm. Some of the views allowed for stereo pictures. On the return leg a gasket failed, leading to cabin depressurisation, which would have been fatal to a human crew. The 7K-L1 then made the first successful double skip trajectory, dipping into the earth's atmosphere over Antarctica, slowing from 11 km/sec to suborbital velocity, then skipping back out into space before making a final re-entry onto Soviet territory. After the re-entry the main parachute ejected prematurely, ripping the main canopy, leading to the capsule being destroyed on impact with the ground. One negative was recovered from the camera container and a small victory obtained over the Americans. But the criteria for a manned flight had obviously not been met and Mishin's only hope to beet the Americans was a failure or delay in the Apollo 8 flight set for December. The next Zond test was set for January.
![]() | Proton Launch Pad - Model of the Proton launch complex. This model shows the servicing structure enclosing the launch vehicle, already mounted above the flame pit. The pad is flanked by lightning and lighting towers. Bunkers for propellant storage lay along the rail line leading to the pad. Credit: Mark Wade. 50,927 bytes. 582 x 394 pixels. |
Launch failure - but the abort system again functioned perfectly, taking the capsule to a safe landing (in Mongolia!) Zond 7K-L1 activity now stops; effort turns to launching unmanned soil return vehicle and first N-1 launch.
Mars probe intended to enter Martian orbit and comprehensively photograph Mars, together with a landing probe.
Mars probe intended to enter Martian orbit and comprehensively photograph Mars, together with a landing probe. Further Mars launches during the 1969 launch window were cancelled when this attempt resulted in a major accident, which almost wiped out all of the leaders of the space industry. The Proton rocket lifted off, but one engine failed. The vehicle flew at an altitude of 50 m horizontally, finally exploding only a few dozen metres from the launch pad, spraying the whole complex with poisonous propellants that were quickly spread by the wind. Everyone took off in their autos to escape, but which direction to go? Finally it was decided that the launch point was the safest, but this proved to be even more dangerous - the second stage was still intact and liable to explode. The contamination was so bad that there was no way to clean up - the only possibility was just had to wait for rain to wash it away. This didn't happen until the Mars launch window was closed, so the first such probe was not put into space until 1971.
![]() | Proton with Granat - Proton with Granat payload Credit: Lockheed Martin. 18,616 bytes. 356 x 446 pixels. |
Unmanned soil return mission launched coincident with Apollo 11 mission in last ditch attempt to return lunar soil to earth before United States. After completing 86 communications sessions and 52 orbits of the Moon at various inclinations and altitudes, crashed on the moon on 20 July in an attempted landing. Altitude data used in programming inaccurate or guidance system unable to cope with effect of lunar mascons.
Officially: Testing of on-board systems of the automatic station and further scientific investigation of the moon and circumlunar space. Parameters are for lunar orbit.
Circumlunar flight; successfully recovered in USSR August 13, 1969. Only completely successful L1 flight that could have returned cosmonauts alive or uninjured to earth. Official mission was further studies of the moon and circumlunar space, to obtain colour photography of the earth and the moon from varying distances, and to flight test the spacecraft systems. Earth photos were obtained on August 9, 1969. On August 11, 1969, the spacecraft flew past the moon at a distance of 1984.6 km and conducted two picture taking sessions. Successfully accomplished double-dip re-entry and landed 50 km from aim point near Kustani in the USSR.
Robotic lunar soil return mission. Failed to leave low earth orbit due to Block D stage failure.
Robotic lunar soil return mission. Failed to leave low earth orbit due to Block D stage failure.
![]() | Proton liftoff Credit: Lockheed Martin. 12,381 bytes. 312 x 238 pixels. |
Robotic lunar soil return mission. Launch vehicle failure.
Lunar Sample Return. Landed on Moon 20 September 1970 at 05:18:00 GMT, Latitude 0.68 S, Longitude 56.30 E - Mare Fecunditatis. Luna 16 was launched toward the Moon from a preliminary earth orbit and entered a lunar orbit on September 17, 1970. On September 20, the spacecraft soft landed on the lunar surface as planned. The spacecraft was equipped with an extendable arm with a drilling rig for the collection of a lunar soil sample. After 26 hours and 25 minutes on the lunar surface, the ascent stage, with a hermetically sealed soil sample container, left the lunar surface carrying 100 grams of collected material. It landed in the Soviet Union on September 24, 1970. The lower stage of Luna 16 remained on the lunar surface and continued transmission of lunar temperature and radiation data. Parameters are for lunar orbit.
Final circumlunar flight; successfully recovered October 26, 1970. The announced objectives were investigations of the moon and circumlunar space and testing of onboard systems. The spacecraft obtained photographs of the earth on October 21 from a distance of 64,480 km. The spacecraft transmitted flight images of the earth for three days. Zond 8 flew past the moon on October 24, 1970, at a distance of 1,110.4 km and obtained both black and white and colour photographs of the lunar surface. Scientific measurements were also obtained during the flight. Again the re-entry guidance system failed, and a 20 G ballistic re-entry was followed by splashdown at the emergency recovery point in the Indian Ocean.
Luna 17 was launched from an earth parking orbit towards the Moon and entered lunar orbit on November 15, 1970. Luna 17 landed on Moon 17 November 1970 at 03:47:00 GMT, Latitude 38.28 N, Longitude 325.00 E - Mare Imbrium (Sea of Rains). The payload, the Lunokhod 1 unmanned rover, rolled down a ramp from the landing stage and began exploring the surface. Lunokhod was intended to operate through three lunar days but actually operated for eleven lunar days (earth months). The operations of Lunokhod officially ceased on October 4, 1971, the anniversary of Sputnik 1. By then it had traveled 10,540 m and had transmitted more than 20,000 TV pictures and more than 200 TV panoramas. It had also conducted more than 500 lunar soil tests. Parameters are for lunar orbit.
![]() | UR-500 / L1 Rollout Credit: RKK Energia. 20,754 bytes. 341 x 239 pixels. |
Test of Block D upper stage in its N1 lunar crasher configuration in earth orbit. The three maneuvers simulated the lunar orbit insertion burn; the lunar orbit circularization burn; and the descent burn to bring the LK lunar lander just over the surface. Payload was a modified Soyuz 7K-L1 circumlunar spacecraft, which provided guidance to the Block D and was equipped with television cameras that viewed the behavior of the Block D stage propellants under zero-G conditions.
Maneuver Summary:
190km X 300km orbit to 303km X 5038km orbit. Delta V: 982 m/s
318km X 5040km orbit to 1616km X 5071km orbit. Delta V: 285 m/s
1616km X 5071km orbit to 2577km X 5082km orbit. Delta V: 1311 m/s
Total Delta V: 2578 m/s.
Mars probe intended to enter Martian orbit and comprehensively photograph Mars. Rocket block failed to reignite in Earth Orbit. It is widely believed this spacecraft was launched with the primary purpose of overtaking Mariner 8, which had been launched (unsuccessfully, as it turned out) two days earlier, and becoming the first Mars orbiter. The Proton booster successfully put the spacecraft into low (174 km x 159 km) Earth parking orbit with an inclination of 51.4 degrees, but the Block D stage 4 failed to function due to a bad ignition timer setting (the timer, which was supposed to start ignition 1.5 hours after orbit was erroneously set for 1.5 years.) The orbit decayed and the spacecraft re-entered Earth's atmosphere 2 days later on 12 May 1971. The mission was designated Cosmos 419.
Mars probe intended to conduct of a series of scientific investigations of the planet Mars and the space around it. Parameters are for Mars orbit. Mid-course corrections were made on 17 June and 20 November. Mars 2 released the descent module (1971-045D) 4.5 hours before reaching Mars on 27 November 1971. The descent system malfunctioned and the lander crashed at 45 deg S, 302 deg W, delivering the Soviet Union coat of arms to the surface. Meanwhile, the orbiter engine performed a burn to put the spacecraft into a 1380 x 24,940 km, 18 hour orbit about Mars with an inclination of 48.9 degrees. Scientific instruments were generally turned on for about 30 minutes near periapsis. Data was sent back for many months. It was announced that Mars 2 and 3 had completed their missions by 22 August 1972. On-orbit dry mass: 2265 kg
![]() | Proton w/ LK - Proton 8K82K Block D launch vehicle with Soyuz 7K-L1 manned circumlunar spacecraft. 27,409 bytes. 316 x 342 pixels. |
Mars probe intended to conduct of a series of scientific investigations of the planet Mars and the space around it. Parameters are for Mars orbit. The Mars 3 orbiter also carried a French-built experiment which was not carried on Mars 2. Called Spectrum 1, the instrument measured solar radiation at metric wavelengths in conjunction with Earth-based receivers to study the cause of solar outbursts. The Spectrum 1 antenna was mounted on one of the solar panels. A mid-course correction was made on 8 June. The descent module (COSPAR 1971-049F) was released at 09:14 GMT on 2 December 1971 about 4.5 hours before reaching Mars. Through aerodynamic braking, parachutes, and retro-rockets, the lander achieved a soft landing at 45 S, 158 W and began operations. However, after 20 sec the instruments stopped working for unknown reasons. Meanwhile, the orbiter engine performed a burn to put the spacecraft into a long 11-day period orbit about Mars with an inclination thought to be similar to that of Mars 2 (48.9 degrees). Data was sent back for many months. It was announced that Mars 2 and 3 had completed their missions by 22 August 1972.
Soft landed on Mars 12/2/71.
Attempted lunar soil return mission; crashed while attempting to soft land at Latitude 3.57 N, Longitude 50.50 E - Mare Fecunditatis. Luna 18 used a new method of navigation in lunar orbit and for landing. The spacecraft's designer, Babakhin, had died at age 56 only the month before. Luna 18 successfully reached earth parking orbit before being put on a translunar trajectory. On September 7, 1971, it entered lunar orbit. The spacecraft completed 85 communications sessions and 54 lunar orbits before it was sent towards the lunar surface by use of braking rockets. It impacted the Moon on September 11, 1971, in a rugged mountainous terrain. Signals ceased at the moment of impact. Parameters are for lunar orbit.
Heavy lunar Orbiter; conducted lunar surface mapping. Luna 19 entered an intermediate earth parking orbit and was then put on a translunar trajectory by the Proton Block D stage. It entered lunar orbit on October 3, 1971. Luna 19 extended the systematic study of lunar gravitational fields and location of mascons (mass concentrations). It also studied the lunar radiation environment, the gamma-active lunar surface, and the solar wind. Photographic coverage via a television system was also obtained. Parameters are for lunar orbit.
Soft landed on Moon; returned soil samples to Earth. Landed on Moon 21 February 1972 at 19:19:00 GMT, Latitude 3.57 N, Longitude 56.50 E - Mare Fecunditatis. Luna 20 was placed in an intermediate earth parking orbit and from this orbit was sent towards the Moon. It entered lunar orbit on February 18, 1972. On 21 February 1972, Luna 20 soft landed on the Moon in a mountainous area known as the Apollonius highlands, 120 km from where Luna 18 had crashed. While on the lunar surface, the panoramic television system was operated. Lunar samples were obtained by means of an extendable drilling apparatus. The ascent stage of Luna 20 was launched from the lunar surface on 22 February 1972 carrying 30 grams of collected lunar samples in a sealed capsule. It landed in the Soviet Union on 25 February 1972. The lunar samples were recovered the following day.
The Proton / Block D launcher put the spacecraft into Earth parking orbit followed by translunar injection. On 12 January 1973, Luna 21 braked into a 90 x 100 km orbit about the Moon. On 13 and 14 January, the perilune was lowered to 16 km altitude. On 15 January after 40 orbits, the braking rocket was fired at 16 km altitude, and the craft went into free fall. At an altitude of 750 meters the main thrusters began firing, slowing the fall until a height of 22 meters was reached. At this point the main thrusters shut down and the secondary thrusters ignited, slowing the fall until the lander was 1.5 meters above the surface, where the engine was cut off. Landing occurred at 23:35 GMT in LeMonnier crater at 25.85 degrees N, 30.45 degrees E. The lander carried a bas relief of Lenin and the Soviet coat-of-arms. After landing, Lunokhod 2 took TV images of the surrounding area, then rolled down a ramp to the surface at 01:14 GMT on 16 January and took pictures of the Luna 21 lander and landing site. It stopped and charged batteries until 18 January, took more images of the lander and landing site, and then set out over the Moon. The rover would run during the lunar day, stopping occasionally to recharge its batteries via the solar panels. At night the rover would hibernate until the next sunrise, heated by the radioactive source. Lunokhod 2 operated for about 4 months, covered 37 km of terrain including hilly upland areas and rilles, and sent back 86 panoramic images and over 80,000 TV pictures. Many mechanical tests of the surface, laser ranging measurements, and other experiments were completed during this time. On June 4 it was announced that the program was completed, leading to speculation that the vehicle probably failed in mid-May or could not be revived after the lunar night of May-June. The Lunokhod was not left in a position such that the laser retroreflector could be used, indicating that the failure may have happened suddenly.
Failed; did not enter Martian orbit as planned; intended to be a Mars orbiter mission. Mars 4 reached Mars on 10 February 1974. Due to use of helium in preflight tests of the computer chips, which resulted in degradation of the chips during the voyage to Mars, the retro-rockets never fired to slow the craft into Mars orbit. Mars 4 flew by the planet at a range of 2,200 km. It returned one swath of pictures and some radio occultation data. Final heliocentric orbit 1.02 x 1.63 AU, 2.2 degree inclination, 556 day period.
Mars probe intended to enter Martian orbit and comprehensively photograph Mars. Parameters are for Mars orbit. Mars 5 reached Mars on 12 February 1974 and was inserted into a 1760 km x 32,586 km orbit. Due to computer chip failures the orbiter operated only a few days and returned atmospheric data and images of a small portion of the Martian southern hemisphere.
Mars probe intended to make a soft landing on Mars. Total fueled launch mass of the lander and orbital bus was 3260 kg. It reached Mars on 12 March 1974, separated from the bus, and entered the atmosphere, where a parachute opened, slowing the descent. As the probe descended through the atmosphere it transmitted data for 150 seconds, representing the first data returned from the atmosphere of Mars. Unfortunately, the data were largely unreadable due to a flaw in a computer chip which led to degradation of the system during its journey to Mars. When the retro-rockets fired for landing, contact was lost with the craft. Mars 6 landed at about 24 degrees south, 25 degrees west in the Margaritifer Sinus region of Mars. Bus ended up in a final heliocentric orbit 1.01 x 1.67 AU, 2.2 degree inclination, 567 day period.
Soft landed on Mars 3/12/74.
Mars probe intended to make a soft landing on Mars. Mars 7 reached Mars on 9 March 1974. Due to a problem in the operation of one of the onboard systems (attitude control or retro-rockets) the landing probe separated prematurely and missed the planet by 1,300 km. The early separation was probably due to a computer chip error which resulted in degradation of the systems during the trip to Mars. Ended up in a final heliocentric orbit 1.01 x 1.69 AU, 2.2 degree inclination, 574 day period.
Mars probe intended to make a soft landing on Mars. Solar Orbit (Heliocentric).
Heavy lunar orbiter. Scientific investigation of the moon and circumlunar space from the orbit of an artificial satellite of the Moon, which was begun by the Luna 19 automatic station. The spacecraft carried imaging cameras and also had the objectives of studying the Moon's magnetic field, surface gamma ray emissions and composition of lunar surface rocks, and the gravitational field, as well as micrometeoroids and cosmic rays. Luna 22 braked into a circular lunar orbit on 2 June 1974. The spacecraft made many orbit adjustments over its 18 month lifetime in order to optimise the operation of various experiments, lowering the perilune to as low as 25 km. Manoeuvring fuel was exhausted on 2 September and the mission was ended in early November. Parameters are for lunar orbit.
Failed lunar soil return mission. After successfully entering earth orbit, flying to the moon, entering lunar orbit, and descending toward the surface, the spacecraft was damaged during landing in Mare Crisium (Sea of Crises). The sample collecting apparatus could not operate and no samples were returned. The lander continued transmissions for three days after landing. In 1976, Luna 24 landed several hundred meters away and successfully returned samples. Parameters are for lunar orbit.
Combined Venus orbiter/lander mission. After separation of the lander, the orbiter spacecraft entered Venus orbit and acted as a communications relay for the lander and explored cloud layers and atmospheric parameters. On October 20, 1975, the Descent Craft was separated from the Orbiter, and landing was made with the sun near zenith at 05:13 GMT on October 22. The Descent Craft included a system of circulating fluid to distribute the heat load. This system, plus precooling prior to entry, permitted operation of the spacecraft for 53 min after landing. The landing was about 2,200 km from the Venera 10 landing site. Preliminary results indicated: (A) clouds 30-40 km thick with bases at 30-35 km altitude, (B) atmospheric constituents including HCl, HF, Br, and I, (C) surface pressure about 90 (earth) atmospheres, (D) surface temperature 485 deg C, (E) light levels comparable to those at earth midlatitudes on a cloudy summer day, and (F) successful TV photography showing shadows, no apparent dust in the air, and a variety of 30-40 cm rocks which were not eroded. Venera 9 and 10 were the first probes to send back black and white pictures from the Venusian surface. They were supposed to make 360 degree panoramic shots, but on both landers one of two camera covers failed to come off, restricting their field of view to 180 degrees. Parameters are for Venus orbit.
The orbiter spacecraft entered Venus orbit and was separated from the lander on October 23, 1975. The lander touched down with the sun near zenith, at 05:17 GMT, on October 25. A system of circulating fluid was used to distribute the heat load. This system, plus precooling prior to entry, permitted operation of the spacecraft for 65 min after landing. During descent, heat dissipation and deceleration were accomplished sequentially by protective hemispheric shells, three parachutes, a disk-shaped drag brake, and a compressible, metal, doughnut-shaped, landing cushion. The landing was about 2,200 km distant from Venera 9. Preliminary results provided: (A) profile of altitude (km)/pressure (earth atmospheres) / temperature (deg C) of 42/3.3/158, 15/37/363, and 0/92/465, (B) successful TV photography showing large pancake rocks with lava or other weathered rocks in between, and (C) surface wind speed of 3.5 m/s. Venera 9 and 10 were the first probes to send back black and white pictures from the Venusian surface. They were supposed to make 360 degree panoramic shots, but on both landers one of two camera covers failed to come off, restricting their field of view to 180 degrees.
Attempted robotic lunar soil return mission. Block D stage failed.
