Ariane 42P V52 - Ariane 42P V52 - COSPAR 1992-052 13,844 bytes. 108 x 427 pixels.

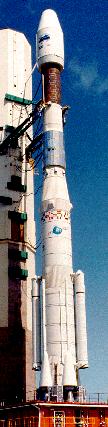

Ariane 4 with 2 solid rocket strap-ons.

Launches: 14. Failures: 1. Success Rate: 92.86% pct. First Launch Date: 20 November 1990. Last Launch Date: 04 September 1999. LEO Payload: 6,600 kg. to: 200 km Orbit. at: 5.2 degrees. Payload: 2,890 kg. to a: Geosynchronous transfer, 7 deg inclination trajectory. Liftoff Thrust: 421,700 kgf. Total Mass: 339,000 kg. Core Diameter: 3.8 m. Total Length: 58.4 m. Launch Price $: 90.00 million. in 2000 price dollars.

• Stage Number: 0. 2 x Ariane 4P Gross Mass: 12,560 kg. Empty Mass: 3,060 kg. Thrust (vac): 70,360 kgf. Isp: 263 sec. Burn time: 29 sec. Isp(sl): 240 sec. Diameter: 1.1 m. Span: 1.1 m. Length: 12.2 m. Propellants: Solid No Engines: 1. P9.5

• Stage Number: 1. 1 x Ariane 4-1 Gross Mass: 245,900 kg. Empty Mass: 17,900 kg. Thrust (vac): 309,400 kgf. Isp: 278 sec. Burn time: 205 sec. Isp(sl): 248 sec. Diameter: 3.8 m. Span: 8.3 m. Length: 23.6 m. Propellants: N2O4/UDMH No Engines: 4. Viking 2B

• Stage Number: 2. 1 x Ariane 2-2 Gross Mass: 37,130 kg. Empty Mass: 3,625 kg. Thrust (vac): 82,087 kgf. Isp: 296 sec. Burn time: 125 sec. Isp(sl): 210 sec. Diameter: 2.6 m. Span: 2.6 m. Length: 11.5 m. Propellants: N2O4/UDMH No Engines: 1. Viking 4B

• Stage Number: 3. 1 x Ariane 4-3 Gross Mass: 12,310 kg. Empty Mass: 1,570 kg. Thrust (vac): 6,394 kgf. Isp: 446 sec. Burn time: 759 sec. Isp(sl): 0 sec. Diameter: 2.7 m. Span: 2.7 m. Length: 11.9 m. Propellants: Lox/LH2 No Engines: 1. HM7-B

• GStar 4 Spacecraft: AS 3000. Mass: 1,295 kg.

  Stationed at 125 deg W. Ku band communications satellite.

• Satcom C1 Spacecraft: AS 3000. Payload: Satcom C1. Mass: 1,169 kg.

  Stationed at 137 deg W.

• S80/T Spacecraft: Microsat SSTL. Mass: 50 kg.

  An industrial research microsatellite built by Surrey Satellite Technology Ltd (SSTL) for Matra and CNES to carry out 'Little LEO' communications service experiments. Still operational in 2000. S80/T was designed to investigate the technical feasibility of using a constellation of small satellites placed in near-Earth orbit to provide global communications and position location using only hand-held terminals. S80/T was the first fully commercial application of the SSTL multi-mission, modular microsatellite platform developed at the University of Surrey. The same basic platform was also used for the Korean KITSAT-A microsatellite, which accompanied S80/T into orbit on the same launch. The S80/T mission was completed, from concept to launch, within one year and SSTL delivered the platform, associated groundstation equipment and would be providing operations support during the mission within a contract of less than �1M.

• Topex/Poseidon Spacecraft: Topex/Poseidon. Mass: 2,402 kg.

  Ocean sensing, mapping. Spacecraft engaged in research and exploration of the upper atmosphere or outer space (US Cat B).

• Oscar 23 Spacecraft: Microsat SSTL. Payload: Kitsat-A. Mass: 50 kg.

  Korean's first satellite achieved via a technology transfer programme with Surrey Satellite Technology Ltd. Carried store and forward communications, DSP and Earth observation payloads. Still operational in 2000. Additional Details: Oscar 23.

• Galaxy 7 Spacecraft: HS 601. Mass: 2,968 kg.

  Geostationary at 91 deg W. Spacecraft engaged in practical applications and uses of space technology such as weather or communication (US Cat C).

• Superbird A1 Spacecraft: FS-1300. Mass: 2,780 kg.

  Stationed at 158 deg E. Domestic communications. Launching states: Japan and France. Launch time 2248 GMT.

• Galaxy 4 Spacecraft: HS 601. Payload: Galaxy 4H. Mass: 2,988 kg.

  Geostationary at 99 deg W. Spacecraft engaged in practical applications and uses of space technology such as weather or communication (US Cat C).

• Astra 1D Spacecraft: HS 601. Mass: 2,924 kg.

  ---

  Ariane 42P Credit: © Mark Wade. 2,808 bytes. 78 x 609 pixels.

  ---

  European DBS and radio. Stationed at 19.29 deg E. TV distribution services to Western Europe and the Canary Islands under franchise from the Grand Duchy of Luxembourg. Contracted and controlled by the private company formed in 1985 called Société Europíenne des Satellites (SES). This is the last in a series of 4 medium power satellites, and will act primarily as Astra 1B and 1C's backup. It will also carry four 12.5 Ghz BSS transponders that can be combined for HDTV. Spacecraft: HS-601 platform.3-axis unified ARC 22 N and one Marquardt 490 N bipropellant thrusters, Sun and Barnes Earth sensors and two 61 Nms 2-axis gimballed momentum bias wheels.1658 kg nitrogen tetroxide & MMH in four spheres. Spin-stabilised in transfer orbit. Twin solar wings of three 2.16 x 2.54 m panels carrying large area silicon cells on Kevlar substrate to satisfy 3.3 kW requirement. Eclipse protection provided by Nickel hydrogen batteries. Payload: 18 eclipse protected transponders, plus six spares with 63W TWTA 10.75-10.95 Ghz FSS (&12.5 Ghz BSS) down Ku-band European beams in 250 Mhz band adjacent (below) to Astra 1C, 26 Mhz bandwidth, eirp 50 dBW min, orthogonal polarisation, operating in the FSS range

• Panamsat 3 Spacecraft: HS 601. Payload: PAS K2.

• DBS 3 Spacecraft: HS 601. Mass: 2,934 kg.

  Commercial TV. Stationed at 101.0 deg W.

• M-SAT 1 Spacecraft: HS 601.

  Geostationary at 106.5W.

• Echostar II Spacecraft: AS 7000.

  Geostationary at 119.0W.

• Hot Bird 4 Spacecraft: Eurostar 2000.

  Geostationary at 13.0 degrees E.

• Insat 2E Spacecraft: Insat 2. Payload: Insat.

  ISRO's Insat 2E was placed in geostationary transfer orbit. The Indian-built satellite carried a C and S band communications package. Stationed at 83 deg E.

• Telkom 1 Spacecraft: AS 2100. Mass: 2,763 kg.

  The launch vehicle delivered its H-10-3 third stage and the Telkom 1 payload into a 221 km x 35687 km x 7.0 degree geosynchronous transfer orbit 21 minutes after launch. Telkom 1 was owned by PT Telkomunikasi of Indonesia and was a successor to the Palapa series of satellites. Mass of Telkom 1 was 1700 kg in geosynchronous orbit after its on-board engine made the apogee burn. Stationed at 108 deg E.

• Koreasat 3 Spacecraft: AS 2100.

  Geosynchronous communications satellite. Stationed at 112 deg E.
