LOX/LH2

This page no longer updated from 31 October 2001. Latest version can be found at www.astronautix.com

LOX/LH2

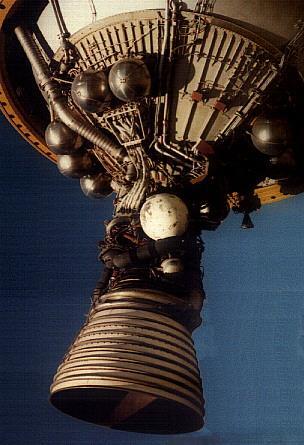

J-2 -

Credit: © Mark Wade. 29,661 bytes. 304 x 445 pixels.

Propellant Formulation: LOX/LH2. Isp: 451.00 vac. Isp: 391.00 sl. Optimum Oxidiser to Fuel Ratio: 4.00. Density: 0.28 g/cc. Temperature of Combustion: 2,985.00 deg K. Ratio of Specific Heats: 1.26. Characteristic velocity c: 2,435 m/s. Isp Shifting: 391. Isp Frozen: 388. Pp Isp Shifting: 109. Mol: 10.00 M.

Oxidiser: LOX. Oxidiser Density: 1.14 g/cc. Oxidiser Freezing Point: -219.00 deg C. Oxidiser Boiling Point: -183.00 deg C.

Liquid oxygen was the earliest, cheapest, safest, and eventually the preferred oxidiser for large space launchers. Its main drawback is that it is moderately cryogenic, and therefore not suitable for military uses where storage of the fuelled missile and quick launch are required. Liquid oxygen, as normally supplied, is of 99.5 percent purity and is covered in the United States by Military Specification MIL-P-25508. High purity liquid oxygen has a light blue colour and is transparent. It has no characteristic odour. Liquid oxygen does not burn, but will support combustion vigorously. The liquid is stable; however, mixtures of fuel and liquid oxygen are shock-sensitive. Gaseous oxygen can form mixtures with fuel vapours that can be exploded by static electricity, electric spark, or flame. Liquid oxygen is obtained from air by fractional distillation. The 1959 United. States production of high-purity oxygen was estimated at nearly 2 million tonnes. The cost of liquid oxygen, at that time, ex-works, was $ 0.04 per kg. By the 1980's NASA was paying $ 0.08 per kg.

Fuel: LH2. Fuel Density: 0.07 g/cc. Fuel Freezing Point: -259.00 deg C. Fuel Boiling Point: -253.00 deg C.

Liquid hydrogen was identified by all the leading rocket visionaries as the theoretically ideal rocket fuel. It had big drawbacks, however - it was highly cryogenic, and it had a very low density, making for large tanks. The United States mastered hydrogen technology for the highly classified Lockheed CL-400 Suntan reconnaissance aircraft in the mid-1950's. The technology was transferred to the Centaur rocket stage program, and by the mid-1960's the United States was flying the Centaur and Saturn upper stages using the fuel. It was adopted for the core of the space shuttle, and Centaur stages still fly today.

In Russia hydrogen fuelled upper stages were designed and developed by the mid-1970's, but the Russians never seem to have found the extra performance to be worth the extra cost. Europe and China developed liquid oxygen/liquid hydrogen engines for upper stages of the Ariane and Long March launch vehicles.

The equilibrium composition of liquid hydrogen is 99.79 per cent parahydrogen and 0.21 per cent orthohydrogen. The boiling point of this composition is -253 deg C. Liquid hydrogen is transparent and without a characteristic odour. Gaseous hydrogen is colourless. Hydrogen is not toxic but is an extremely flammable material. The flammable limits of gaseous hydrogen in air are 4.0 to 75 volume percent.

Hydrogen is produced from by-product hydrogen from petroleum refining and the partial oxidation of fuel oil. The gaseous hydrogen is purified to 99.999+ per cent, and then liquefied in the presence of paramagnetic metallic oxides. The metallic oxides catalyse the ortho-para transformation of freshly liquefied hydrogen. Freshly liquefied hydrogen which has not been catalysed consists of a 3:1 ortho-para mixture and cannot be stored for any length of time because of the exothermic heat of conversion. The delivered cost of liquid hydrogen in 1960 was approximately $ 2.60 per kg. Large-scale production was expected to reduce the cost to $ 1.00 per kg. In the 1980's NASA was actually paying $ 3.60 per kg.

Engines Using Lox/LH2

Eng-engineslink Thrust(vac)-kgf Thrust(vac)-kN Isp-sec Isp (sea level)-sec Designed for Status

RS-52 11 405

RM-1500H 680 400

YF-73 1,125 11.00 425 Upper Stages In Production

RS-71 3,174 430

RD-0126 3,997 39.20 476 Upper Stages Design concept 1993-

HM7-A 6,289 61.70 443 308 Upper Stages Out of Production

HM-10 6,300 61.80 443 Upper Stages Developed 1990's

HM7-B 6,394 62.70 446 310 Upper Stages In Production

RL-10A-3 6,690 65.60 444 Upper Stages Out of Production

RL-10A-5 6,696 64.70 373 316 First Stages Out of Production

AEC 6,801 481

RL-10A-1 6,804 66.70 425 10 Upper Stages Out of Production

RL-10 6,804 66.70 410 10 Upper Stages Out of Production

RD-56 7,100 69.60 462 Upper Stages Developed 1960-77

RL-10A-3A 7,485 73.40 444 Upper Stages In Production

RD-56M 7,503 73.58 461 Upper Stages Developed 1994-

YF-75 8,000 78.50 440 Upper Stages In Production

AMPS-1 8,161 468

ASE 9,068 473

RL-10A-4 9,433 92.50 449 Upper Stages In Production

RL-10B-X 9,524 93.40 470 Upper Stages Design concept 1994

RD-0132 10,000 98.00 469 Upper Stages Design concept 1996-

RD-0126A 10,000 98.00 476 Upper Stages Design concept 1996-

RD-0131 10,000 98.00 467 Upper Stages Design concept 1996-

RD-0133 10,000 98.00 467 Upper Stages Design concept 1996-

RD-0128 10,000 98.00 474 Upper Stages Design concept 1996-

RL-10A-4-2 10,110 99.10 451 Upper Stages In Production

RL-10A-4-1 10,110 99.10 451 Upper Stages In Production

RD-0146 10,197 100.00 470 Upper Stages Design concept 1998-

RL-10A-5KA 10,247 398 352 First Stages Design 1992

LE-5 10,500 103.00 450 Upper Stages In Production

RL-10B-2 11,222 110.00 462 Upper Stages In Production

RL-10C-X 11,300 110.80 450 Upper Stages Design concept 1994

LE-5A 12,390 121.50 452 Upper Stages In Production

HIMES 14,000 137.30 452 340 Upper Stages Study -1998

LE-5B 14,000 137.00 447 Upper Stages In Production

Truax LH2 15,000 147.10 425 306 Upper Stages Design concept 1982

RL-10C 15,873 155.70 450 Upper Stages In Production

MB-60 27,200 467

RL-50 29,500 290.00 472 Upper Stages Development

LH2-80k 36,274 355.70 425 306 Upper Stages Study 1959

RD-57 40,000 392.00 457 Upper Stages Developed 1960-77

RD-54 40,000 392.00 440 Upper Stages Developed 1960-75

RD-57A-1 40,279 395.00 460 Upper Stages Developed 1995-98

RD-57M 40,483 397.00 461 Upper Stages Developed 1960-74

MBB-ATC500 45,000 441.30 460 409 First Stages Study 1980

LR-87 LH2 68,000 667.00 350 Upper Stages Out of Production

J-2T-200K 90,686 889.30 435 300 Upper Stages Study NASA 1966

J-2-SL 101,634 996.70 390 275 First Stages Study 1966

J-2 105,352 1,033.10 421 200 Upper Stages Out of Production

Vulcain 109,619 1,075.00 431 326 First Stages In Production

LE-7 109,925 1,078.00 446 349 First Stages In Production

LE-7A 112,000 1,098.00 440 338 First Stages In Development

Aerospike Annular Booster 113,358 450

J-2T-250K 113,358 1,111.60 441 290 Upper Stages Study NASA 1966

J-2S 121,066 1,187.00 426 200 Upper Stages Developed 1965-1969

XRS-2200 121,600 1,192.00 439 339 First Stages In Production

ATCRE 130,524 1,280.00 490 409 Upper Stages Study -1985

Vulcain 2 132,563 1,300.00 440 318 First Stages Developed 1990's

HG-3-SL 141,500 1,387.00 450 360 First Stages Study 1966

HG-3 142,831 1,400.70 451 280 Upper Stages Developed 1960's

SSME Study 156,550 1,535.20 459 359 First Stages Study 1970

Plug-Nozzle SASSTO 160,600 1,574.90 459 359 First Stages Study 1966

Helios Stage 1 170,000 1,667.00 400 340 First Stages Study, Ehricke, 1960

Toroidal 400k 181,400 1,778.00 447 200 Upper Stages Design concept 1990's

RD-0120M 200,000 1,961.00 455 372 First Stages Hardware

RD-0120 200,000 1,961.00 455 359 First Stages Out of Production

NK-35 200,000 1,960.00 Upper Stages Design 1972

NK-15VM 200,000 1,960.00 Upper Stages Developed 1965

Mustard 220,000 2,157.40 405 300 First Stages Study 1967

RS-2200 224,540 2,201.00 455 347 Upper Stages In Production

SSME 232,301 2,278.00 453 363 First Stages In Production

RD-0122 235,860 2,313.00 461 Upper Stages Developed 1990-

SSME Demonstrator Booster 249,400 465

Toroidal 560k 254,020 2,491.00 447 200 Upper Stages Design concept 1990's

STME 294,703 2,890.00 431 365 First Stages Developed -1990

RS-68 337,807 3,312.00 420 365 First Stages In Production

SSME Plus 380,221 3,728.70 467 385 First Stages Study 1970

Plug-Nozzle SSME 380,221 3,728.70 485 412 First Stages Study 1970

PW 1000000 lb LH2 454,500 4,457.00 425 354 First Stages Study 1988

M-1 544,118 5,335.90 428 310 Upper Stages Developed 1960's

HP-1 666,541 6,536.00 451 379 First Stages Study 1963

Plug-Nozzle J-2 700,000 6,864.60 425 330 First Stages Study 1993

CD Module 750,708 7,361.00 420 377 First Stages Design concept 1960's

Chamber/single nozzle 1,349,250 13,231.00 455 365 First Stages Design concept 1960's

Toroid FD 2,041,000 20,015.00 455 Upper Stages Study 1963

Plug-Nozzle Pegasus 2,440,000 23,928.00 459 359 First Stages Study 1966

L-5.25H 2,789,000 27,350.00 410 350 First Stages Study General Dynamics 1963

L-5.00H 3,129,000 30,684.00 428 310 First Stages Study General Dynamics 1963

Plug-Nozzle SERV 3,261,105 31,980.20 455 367 First Stages Study 1970

5 mlbf 4,217,750 41,361.00 410 345 First Stages Study 1963

Plug-Nozzle Rombus 10,400,000 101,988.00 459 359 First Stages Study 1966

L6H 12,517,000 122,748.00 439 382 First Stages Study 1963
