Vostok 8A92

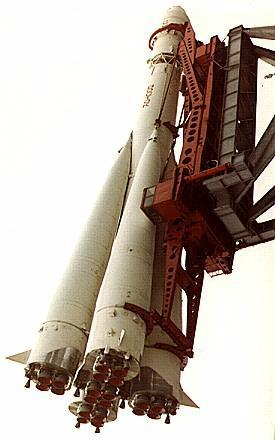

Vostok LV - Vostok launch vehicle, Moscow

Credit: © Mark Wade. 20,612 bytes. 275 x 440 pixels.

Family: R-7. Country: Russia. Status: Hardware. Library of Congress Designation: A-1. Department of Defence Designation: SL-3. Article Number: 8K72K.

The 8A92 was a modernized version of the Vostok booster used for launch of Zenit-2 reconnaisance satellites.

Specifications

Launches: 52. Failures: 5. Success Rate: 90.38% pct. First Launch Date: 01 June 1962. Last Launch Date: 12 May 1967. LEO Payload: 4,730 kg. to: 200 km Orbit. at: 65.0 degrees. Liftoff Thrust: 407,565 kgf. Total Mass: 281,375 kg. Core Diameter: 3.0 m. Total Length: 30.8 m.

Stage Number: 0. 4 x Vostok 8A92-0 Gross Mass: 43,300 kg. Empty Mass: 3,700 kg. Thrust (vac): 101,500 kgf. Isp: 313 sec. Burn time: 118 sec. Isp(sl): 256 sec. Diameter: 2.7 m. Span: 2.7 m. Length: 19.0 m. Propellants: Lox/Kerosene No Engines: 1. RD-107-8D74K
Stage Number: 1. 1 x Vostok 8A92-1 Gross Mass: 100,400 kg. Empty Mass: 6,800 kg. Thrust (vac): 95,900 kgf. Isp: 315 sec. Burn time: 301 sec. Isp(sl): 248 sec. Diameter: 3.0 m. Span: 3.0 m. Length: 28.0 m. Propellants: Lox/Kerosene No Engines: 1. RD-108-8D75K
Stage Number: 2. 1 x Vostok 8A92-2 Gross Mass: 7,775 kg. Empty Mass: 1,440 kg. Thrust (vac): 5,600 kgf. Isp: 326 sec. Burn time: 369 sec. Isp(sl): 0 sec. Diameter: 2.6 m. Span: 2.6 m. Length: 2.8 m. Propellants: Lox/Kerosene No Engines: 1. RD-0109

Vostok 8A92 Chronology

1962 Jun 1 - - 09:38 GMT. Launch Site: Baikonur . Launch Complex: LC1. FAILURE: Shutdown of Block B strap-on engine stage 1.8 seconds after liftoff. The booster crashed 300 m from the pad. Pad damaged.

Zenit-2 11F61 s/n 3 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 3. Mass: 4,610 kg.
Area survey photo reconnaissance satellite. Third attempted launch of Zenit photo-reconnaissance satellite.

1962 Jul 28 - - 09:19 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 7 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 4. Mass: 4,610 kg.
Area survey photo reconnaissance satellite. Also performed radiation measurements.

1962 Sep 27 - - 09:40 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 9 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 7. Mass: 4,700 kg.
Area survey photo reconnaissance satellite. Also performed radiation measurements.

1962 Oct 17 - - 09:00 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 10 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 5. Mass: 4,700 kg.
Area survey photo reconnaissance satellite. Also performed radiation measurements.

1962 Dec 22 - - 09:33 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 12 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 6. Mass: 4,700 kg.
Area survey photo reconnaissance satellite. Also performed radiation measurements.

1963 Mar 21 - - 08:24 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 13 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 9. Mass: 4,700 kg.
Area survey photo reconnaissance satellite. Also performed radiation measurements.

1963 Apr 22 - - 08:24 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 15 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 8. Mass: 4,720 kg.
Vostok LV
Credit: © Mark Wade. 1,240 bytes. 74 x 282 pixels.
Area survey photo reconnaissance satellite. Also carried weather, radiation experiments.

1963 Apr 28 - - 09:36 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 16 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 10. Mass: 4,720 kg.
Program partially completed. Part of the information lost due to failure of engine block stabilization system. Area survey photo reconnaissance satellite. Also performed radiation measurements.

1963 May 24 - - 10:48 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 18 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 11. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Also performed radiation measurements.

1963 Jul 10 - Launch Site: Baikonur . Launch Complex: LC1. FAILURE: Shutdown of Block B strap-on engine stage 1.9 seconds after liftoff. Pad damaged.

Zenit-2 11F61 s/n 12 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 12. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1963 Oct 18 - - 09:30 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 20 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 13. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1963 Nov 28 - Launch Site: Baikonur . Launch Complex: LC1. FAILURE: Failure of block E upper stage. Spacecraft liquidated by APO destruct system.

Zenit-2 11F61 s/n 14 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 14. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1963 Dec 19 - - 09:29 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 24 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 15. Mass: 4,720 kg.
R-7 Cutaways
Credit: © Mark Wade. 12,874 bytes. 549 x 570 pixels.
Area survey photo reconnaissance satellite.

1964 Jan 30 - - 09:45 GMT. Launch Site: Baikonur .

Elektron 2 Spacecraft: Elektron-B. Payload: 2D s/n 2. Mass: 444 kg.
Studied outer Van Allen belt. Electron I and II launched by a single carrier rocket. Electron I: simultaneous study of the Earth's inner and outer radiation belts, cosmic rays and upper atmosphere. Electron II: simultaneous study of the Earth's inner and outer radiation belts, cosmic rays and outer space.
Elektron 1 Spacecraft: Elektron-A. Payload: 2D s/n 1. Mass: 329 kg.
Studied inner Van Allen belt. Electron I and II launched by a single carrier rocket. Electron I: simultaneous study of the Earth's inner and outer radiation belts, cosmic rays and upper atmosphere. Electron II: simultaneous study of the Earth's inner and outer radiation belts, cosmic rays and outer space.

1964 Mar 10 -

Zenit-2 spy satellite accepted into mlitary service Spacecraft: Zenit-2.
Defence Ministry of the USSR decree 0045 'On adopting the Zenit-2 satellite launched on the 8A92 into armaments' was issued.

1964 Apr 4 - - 09:36 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 28 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 16. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1964 Apr 25 - - 10:19 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 29 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 19. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1964 Jun 10 - - 10:48 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 32 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 18. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1964 Jun 23 - - 10:19 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 33 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 20. Mass: 4,720 kg.
R-7 aft end
Credit: © Mark Wade. 47,694 bytes. 421 x 583 pixels.
Area survey photo reconnaissance satellite.

1964 Jul 11 - - 21:51 GMT. Launch Site: Baikonur .

Elektron 4 Spacecraft: Elektron-B. Payload: 2D s/n 4. Mass: 444 kg.
Studied outer Van Allen belt. Electron 3 and 4 launched by a single carrier rocket. Simultaneous study of the inner and outer radiation belts of the earth, cosmic rays and the upper atmosphere.
Elektron 3 Spacecraft: Elektron-A. Payload: 2D s/n 3. Mass: 350 kg.
Studied inner Van Allen belt. Electron 3 and 4 launched by a single carrier rocket. Simultaneous study of the inner and outer radiation belts of the earth, cosmic rays and the upper atmosphere.

1964 Jul 15 - - 11:31 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 35 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 21. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1964 Aug 14 - - 09:36 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 37 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 22. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Program partially completed. Break in the film fof the SA-10 camera.

1964 Aug 28 - - 16:19 GMT. Launch Site: Baikonur .

Cosmos 44 Spacecraft: Meteor. Payload: Meteor no. 1. Mass: 4,730 kg.
Investigation of the upper atmosphere and outer space.

1964 Sep 24 - - 12:00 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 46 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 23. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1964 Oct 14 - - 09:50 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 48 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 24. Mass: 4,720 kg.
R-7
Credit: © Mark Wade. 13,170 bytes. 193 x 287 pixels.
Area survey photo reconnaissance satellite. Program partially completed. Returned early due to failure of spacecraft thermoregulation system; internal temperature rose to 43 degrees C.

1964 Oct 28 - - 10:48 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 50 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 25. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Unsuccessful mission. Failure of the braking engine system. Spacecraft ordered to self destruct.

1965 Jan 11 - - 09:36 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 52 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 26. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1965 Feb 26 - - 05:02 GMT. Launch Site: Baikonur .

Cosmos 58 Spacecraft: Meteor. Payload: Meteor no. 2. Mass: 4,730 kg.
Probable weather satellite. Investigation of the upper atmosphere and outer space.

1965 Mar 25 - - 10:04 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 64 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 17. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1965 May 7 - - 09:50 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 66 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 27. Mass: 4,720 kg.
Returned after 8 days. Unsuccessful mission. Parachute deployment failure. Spacecraft destroyed in crash.

1965 Jun 15 - - 10:04 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 68 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 29. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1965 Jul 13 - Launch Site: Baikonur . Launch Complex: LC31. FAILURE: Second stage guidance failure.

Zenit-2 11F61 s/n 28 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 28. Mass: 4,720 kg.
R-7 forward view - R-7 forward compartment
Credit: © Mark Wade. 46,494 bytes. 565 x 391 pixels.
Area survey photo reconnaissance satellite.

1965 Aug 14 - - 11:16 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 78 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 30. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1965 Nov 27 - - 08:24 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 98 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 31. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1965 Dec 10 - - 08:09 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 99 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 32. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1965 Dec 17 - - 02:24 GMT. Launch Site: Baikonur .

Cosmos 100 Spacecraft: Meteor. Payload: Meteor no. 3. Mass: 4,730 kg.
Probable weather satellite. Investigation of the upper atmosphere and outer space.

1966 Jan 7 - - 08:24 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 104 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 36. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Program not completely met. Spacecraft put into incorrect orbit by abnormal function of second and third stages of booster.

1966 Jan 22 - - 08:38 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 105 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 38. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1966 Feb 10 - - 08:52 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 107 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 34. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1966 Mar 17 - - 10:28 GMT. Launch Site: Plesetsk . Launch Complex: LC41/1.

Cosmos 112 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 37. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1966 Apr 20 - - 10:48 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 115 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 35. Mass: 4,720 kg.
. Program partially completed. Abnormal operation of SA-10 camera.

1966 May 6 - - 11:02 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 117 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 39. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1966 May 11 - - 14:09 GMT. Launch Site: Baikonur .

Cosmos 118 Spacecraft: Meteor. Payload: Meteor no. 4. Mass: 4,730 kg.
Probable weather satellite. Investigation of the upper atmosphere and outer space.

1966 Jun 25 - - 10:19 GMT. Launch Site: Baikonur .

Cosmos 122 Spacecraft: Meteor. Payload: Meteor no. 5. Mass: 4,730 kg.
Investigation of the upper atmosphere and outer space.

1966 Sep 16 - Launch Site: Baikonur . Launch Complex: LC31. FAILURE: Launch vehicle destroyed. Failure of Block D core stage.

Zenit-2 11F61 s/n 40 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 40. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1966 Oct 14 - - 12:13 GMT. Launch Site: Plesetsk . Launch Complex: LC41/1.

Cosmos 129 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 33. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1966 Nov 19 - - 08:09 GMT. Launch Site: Baikonur . Launch Complex: LC31.

Cosmos 132 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 46. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1966 Dec 19 - - 12:00 GMT. Launch Site: Plesetsk . Launch Complex: LC41/1.

Cosmos 136 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 47. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Also carried science package.

1967 Jan 19 - - 12:40 GMT. Launch Site: Plesetsk . Launch Complex: LC41/1.

Cosmos 138 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 43. Mass: 4,720 kg.
Area survey photo reconnaissance satellite.

1967 Feb 27 - - 08:45 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 143 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 45. Mass: 4,720 kg.
Placed into orbit with 22.8 second period different from that planned. Area survey photo reconnaissance satellite. Also carried science package.

1967 Mar 13 - - 12:10 GMT. Launch Site: Plesetsk . Launch Complex: LC41/1.

Cosmos 147 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 44. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Program partially completed.

1967 Apr 4 - - 14:00 GMT. Launch Site: Plesetsk . Launch Complex: LC41/1.

Cosmos 153 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 48. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Program partially completed. Failure of primary SA-20 camera.

1967 May 12 - - 10:30 GMT. Launch Site: Baikonur . Launch Complex: LC1.

Cosmos 157 Spacecraft: Zenit-2. Payload: Zenit-2 11F61 s/n 49. Mass: 4,720 kg.
Area survey photo reconnaissance satellite. Program partially completed. Bad quality film loaded into SA-20 camera.

Bibliography:

89 - Semenov, Yu. P., S P Korolev Space Corporation Energia, RKK Energia, 1994.
150 - Clark, P S, Journal of the British Interplanetary Society, "Soviet Spacecraft Masses for Earth Orbital Programmes", 1985, Volume 38, page 19.

Back to Index

Last update 12 March 2001.
Definitions of Technical Terms.
Contact Mark Wade with any corrections or comments.
Conditions for use of drawings, pictures, or other materials from this site..
© Mark Wade, 2001 .
