N1F Sr

N1F - Sr - N1F with Sr Lox/LH2 upper stage

5,291 bytes. 79 x 311 pixels.

Family: N. Country: Russia. Status: Cancelled 1974.

The final more modest version of the N1M replaced the fourth and fifth stages of the N1 with the single liquid oxygen/liquid hydrogen Block Sr stage. Development of the Sr stage was from May 1971 until cancellation of the N1 project in May 1974.

Specifications

Liftoff Thrust: 3,976,000 kgf. Total Mass: 2,677,900 kg. Core Diameter: 10.0 m. Total Length: 94.0 m.

Stage Number: 1. 1 x N1F Block A Gross Mass: 2,070,000 kg. Empty Mass: 126,230 kg. Thrust (vac): 5,065,500 kgf. Isp: 331 sec. Burn time: 125 sec. Isp(sl): 297 sec. Diameter: 10.0 m. Span: 15.6 m. Length: 30.0 m. Propellants: Lox/Kerosene No Engines: 30. NK-33
Stage Number: 2. 1 x N1F Block B Gross Mass: 620,000 kg. Empty Mass: 55,700 kg. Thrust (vac): 1,431,682 kgf. Isp: 346 sec. Burn time: 120 sec. Diameter: 6.8 m. Span: 9.8 m. Length: 20.0 m. Propellants: Lox/Kerosene No Engines: 8. NK-43
Stage Number: 3. 1 x N1F Block V Gross Mass: 210,000 kg. Empty Mass: 13,700 kg. Thrust (vac): 164,000 kgf. Isp: 353 sec. Burn time: 370 sec. Diameter: 4.8 m. Span: 6.8 m. Length: 12.0 m. Propellants: Lox/Kerosene No Engines: 4. NK-39
Stage Number: 4. 1 x N1 Block Sr Gross Mass: 77,900 kg. Empty Mass: 11,500 kg. Thrust (vac): 15,080 kgf. Isp: 441 sec. Burn time: 1,910 sec. Diameter: 5.2 m. Span: 5.2 m. Length: 16.5 m. Propellants: Lox/LH2 No Engines: 2. RD-56M

N1F Sr Chronology

- 1971 May -

Block Sr Lox/LH2 stage development begins
The final version of the N1M replaced the fourth and fifth stages of the N1 with the single liquid oxygen/liquid hydrogen Block Sr stage.

1974 May 2 -

Development of Block R LH2/LOX stage begins
Development of the Block Sr for the N1M cancelled; work on the smaller Block R LH2/LOX stage was resumed. This stage was eventually to have been used on the Buran / Vulkan launch vehicles.

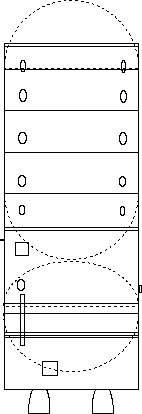

Blok SR
Credit: RKK Energia. 18,802 bytes. 149 x 425 pixels.

Bibliography:

89 - Semenov, Yu. P., S P Korolev Space Corporation Energia, RKK Energia, 1994.

Blok SR
