astronautix.com Agena B
Agena B

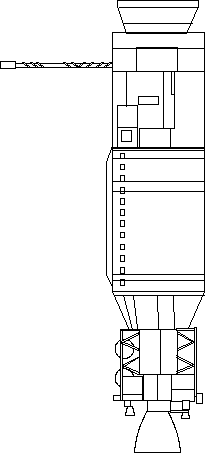

Agena B -

Credit: © Mark Wade. 2,841 bytes. 205 x 453 pixels.

Gross Mass: 7,167 kg. Empty Mass: 867 kg. Thrust (vac): 7,257 kgf. Isp: 285 sec. Burn time: 240 sec. Propellants: Nitric acid/UDMH Isp(sl): 0 sec. Diameter: 1.5 m. Span: 1.5 m. Length: 7.1 m. Country: USA. No Engines: 1. Bell 8081 Status: Hardware. Used as: Atlas Agena B; Thor Agena B.
