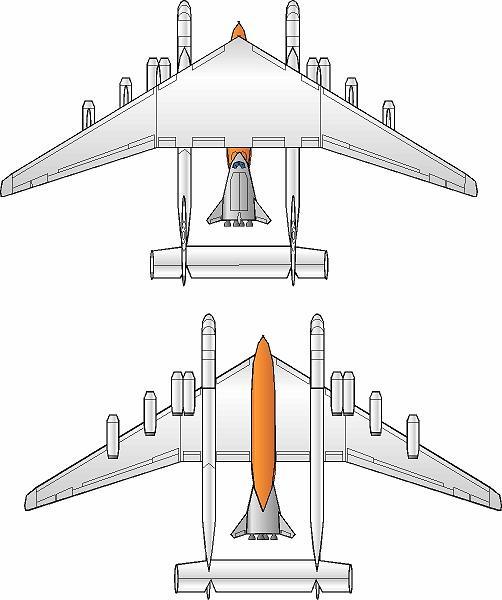

| 49M Top/Bottom Views 35,519 bytes. 502 x 600 pixels. |
| astronautix.com | System 49-M |
|
| 49M Top/Bottom Views 35,519 bytes. 502 x 600 pixels. |
The 49M was an application of the system 49 design concept, but with a larger carrier aircraft. The system would have a 770 tonne gross takeoff mass. The orbiter/rocket stage combination weighted 370 tonnes, with the orbiter mass being 28 tonnes in orbit, including a 9 tonne payload in a 8.0 m x 3.3 m diameter payload bay. The tripropellant single rocket stage was equipped 1 x NK-43 / 11D112 engine burning Lox/Kerosene and 2 x RD-57 / 11D57 engines burning Lox/LH2. The orbiter could have one or two crew, and was designed for 100 reuses. Development costs for the new heavy lift aircraft and larger orbiter would be too high, and the design was abandoned in favour of the Bizan concept.
 | 49M 19,088 bytes. 502 x 300 pixels. |
LEO Payload: 9,000 kg. to: 200 km Orbit. at: 51.0 degrees. Total Mass: 400,000 kg.
