SLV-3 Atlas

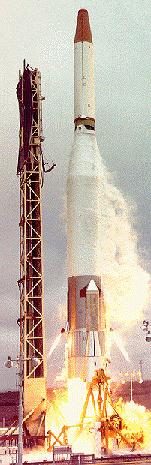

Atlas SLV - Atlas SLV-3 s/n 7004 / Burner-2 (No Agena) - 1968-08-16

20,836 bytes. 151 x 465 pixels.

Family: Atlas. Country: USA. Status: Hardware. Department of Defence Designation: SLV-3.

Standardized Atlas booster with no or small solid upper stage.

Specifications

LEO Payload: 800 kg. to: 300 km Orbit. at: 28.0 degrees.

Stage Number: 0. 1 x Atlas MA-3 Gross Mass: 3,174 kg. Empty Mass: 3,174 kg. Thrust (vac): 167,740 kgf. Isp: 290 sec. Burn time: 120 sec. Isp(sl): 256 sec. Diameter: 4.9 m. Span: 4.9 m. Length: 0.0 m. Propellants: Lox/Kerosene No Engines: 2. LR-89-5
Stage Number: 1. 1 x Atlas Agena SLV-3 Gross Mass: 117,026 kg. Empty Mass: 2,326 kg. Thrust (vac): 39,400 kgf. Isp: 316 sec. Burn time: 265 sec. Isp(sl): 220 sec. Diameter: 3.1 m. Span: 4.9 m. Length: 20.7 m. Propellants: Lox/Kerosene No Engines: 1. LR-105-5

SLV-3 Atlas Chronology

1966 Jun 1 - - 15:00 GMT. LV Configuration: Atlas SLV-3 - No Agena. Launch Site: Cape Canaveral . Launch Complex: LC14.

Gemini 9 ATDA Spacecraft: Atlas Target Docking Adapter. Payload: TDA 4. Mass: 794 kg.
The ATDA achieved a near-circular orbit (apogee 161.5, perigee 158.5 nautical miles). One hour and 40 minutes later, the scheduled launch of Gemini IX-A was postponed by a ground equipment failure which prevented the transfer of updating information from Cape Kennedy mission control center to the spacecraft computer. The mission was recycled for launch on June 3, following a prepared 48-hour recycle plan. Anomalous telemetry indicated some sort of problem with the target, but it was not until Gemini IX rendezvoused with it in orbit that it was seen that fairing separation had failed.

1966 Dec 21 - LV Configuration: Atlas SLV-3 - No Agena. Launch Site: Vandenberg .

Prime 1 Spacecraft: Prime. Payload: Prime 1.
Suborbital.

1967 Mar 5 - LV Configuration: Atlas SLV-3 - No Agena. Launch Site: Vandenberg .

Prime 2 Spacecraft: Prime. Payload: Prime 2.
Suborbital.

1967 Apr 19 - LV Configuration: Atlas SLV-3 - No Agena. Launch Site: Vandenberg .

Prime 3 Spacecraft: Prime. Payload: Prime 3.
Suborbital.

1968 Aug 16 - - 20:57 GMT. LV Configuration: Atlas SLV-3 s/n 7004 / Burner-2 (No Agena). Launch Site: Vandenberg . Launch Complex: SLC3E. FAILURE: Failure.

AVL-802 Grid Sphere 7-1 Spacecraft: Orbiscal. Payload: AVL-802.
AVL-802 Grid Sphere 7-2 Spacecraft: Calsphere. Payload: AVL-802.
AVL-802 Rigid Sphere Spacecraft: Calsphere. Payload: AVL-802.
Radcat Spacecraft: Radcat. Payload: Radcat.
EGRS 12 Spacecraft: Orbiscal. Payload: EGRS 12.
EGRS 11 Spacecraft: Orbiscal. Payload: EGRS 11.
LCS 3 Spacecraft: Orbiscal. Payload: LCS 3. Mass: 37 kg.
1 of 13 satellite launch attempts; investigate effects of ionosphere on radio signals.
OV5-8 Spacecraft: OV5. Payload: OV5-8.
UVR Spacecraft: Orbiscal. Payload: UVR.
Orbiscal 1 Spacecraft: Orbiscal. Payload: Orbiscal 1.

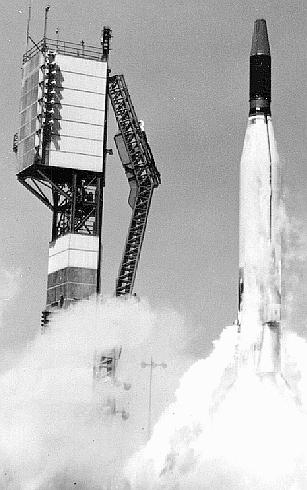

Atlas Burner 2A - Atlas Burner 2A - COSPAR 1972-076
27,650 bytes. 307 x 490 pixels.
RM-18 Spacecraft: RM. Payload: RM-18.
LIDOS Spacecraft: Orbiscal. Payload: LIDOS.
AVL-802 Mylar Sphere Spacecraft: Calsphere. Payload: AVL-802.
