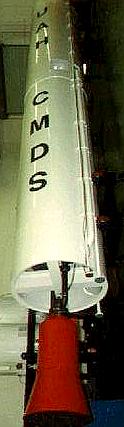

| Liberty 1 - 11,965 bytes. 124 x 427 pixels. |
|
Family: Miscellany. Country: USA. Status: Development 1988.
Private commercial launch vehicle.
SpecificationsLiftoff Thrust: 21,300 kgf. Total Mass: 19,180 kg. Core Diameter: 1.6 m. Total Length: 17.0 m. Flyaway Unit Cost $: 2.00 million. in 1985 unit dollars.
- Stage Number: 1. 1 x Liberty 1 Gross Mass: 17,000 kg. Empty Mass: 2,240 kg. Thrust (vac): 25,000 kgf. Isp: 270 sec. Burn time: 157 sec. Isp(sl): 230 sec. Diameter: 1.6 m. Span: 1.6 m. Length: 10.2 m. Propellants: Lox/Kerosene No Engines: 1. Liberty-1
- Stage Number: 2. 1 x Liberty 2 Gross Mass: 2,180 kg. Empty Mass: 180 kg. Thrust (vac): 1,814 kgf. Isp: 300 sec. Burn time: 326 sec. Isp(sl): 200 sec. Diameter: 1.4 m. Span: 1.4 m. Length: 4.0 m. Propellants: N2O4/MMH No Engines: 1. Liberty-2
Bibliography:- 248 - Interplanetary Spacecraft, .
