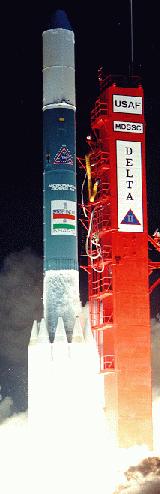

| Delta 4925 - Delta 4925-8 no. 196 - COSPAR 1990-051 14,132 bytes. 160 x 494 pixels. |
|
Family: Delta. Country: USA. Status: Hardware.
SpecificationsLaunches: 2. Failures: 0. Success Rate: 100.00% pct. First Launch Date: 27 August 1989. Last Launch Date: 12 June 1990. LEO Payload: 3,400 kg. to: 185 km Orbit. Payload: 1,200 kg. to a: Geosynchronous transfer trajectory. Liftoff Thrust: 353,720 kgf. Total Mass: 200,740 kg. Core Diameter: 2.4 m. Total Length: 34.0 m. Flyaway Unit Cost $: 34.22 million. in 1985 unit dollars.
- Stage Number: 0. 9 x Castor 4A Gross Mass: 11,743 kg. Empty Mass: 1,529 kg. Thrust (vac): 48,774 kgf. Isp: 266 sec. Burn time: 56 sec. Isp(sl): 237 sec. Diameter: 1.0 m. Span: 1.0 m. Length: 9.1 m. Propellants: Solid No Engines: 1. TX-780
- Stage Number: 1. 1 x Delta Thor ELT Gross Mass: 84,067 kg. Empty Mass: 4,059 kg. Thrust (vac): 105,052 kgf. Isp: 296 sec. Burn time: 222 sec. Isp(sl): 262 sec. Diameter: 2.4 m. Span: 2.4 m. Length: 22.4 m. Propellants: Lox/Kerosene No Engines: 1. RS-27
- Stage Number: 2. 1 x Delta K Gross Mass: 6,954 kg. Empty Mass: 950 kg. Thrust (vac): 4,450 kgf. Isp: 319 sec. Burn time: 431 sec. Diameter: 1.7 m. Span: 2.4 m. Length: 5.9 m. Propellants: N2O4/Aerozine-50 No Engines: 1. AJ10-118K
Delta 4920 Chronology
1989 Aug 27 - - 23:02 GMT. LV Configuration: Delta 4925-8 / Delta s/n 187. Launch Site: Cape Canaveral . Launch Complex: LC17B.
- BSB-1A Spacecraft: HS 376. Payload: Marco Polo 1. Mass: 1,233 kg.
British DBS; 31 deg W. Direct broadcasting system. Expected operational life, 10 years. Owner/operator: British Satellite Broadcasting Ltd, The Marcopolo Building, Chelsea Bridge, Queenstown Rd, London SW8 4NQ.
1990 Jun 12 - - 05:52 GMT. LV Configuration: Delta 4925-8 / Delta s/n 196. Launch Site: Cape Canaveral . Launch Complex: LC17B.
- Insat-1D; Insat 1D Spacecraft: Insat 1. Payload: Insat 1D. Mass: 1,190 kg.
Also performed Indian domestic communications tasks; 83.1 E. Operational multi-purpose satellite for telecommunications, meteorological imaging and data relay, radio and television programme distribution and direct television broadcasting for community reception. Orbital position 83 deg E. Also registered as 1990-5 1A in ST/SG/SER.E/250 by the United States, with category B and orbital parameters 1426.3 min, 35768 x 35811 km x 0.2 deg.
Bibliography:- 42 - Isakowitz, Steven J,, International Reference to Space Launch Systems Second Edition, AIAA, Washington DC, 1991.
- 61 - Wilson, Andrew, editor,, Jane's/Interavia Space Directory, Jane's Information Group, Coulsdon, Surrey, 1992 et al.
