Atlas LV-3A / Agena A

Atlas Agena A - Atlas Agena A - Midas 2 - COSPAR 1960 Zeta

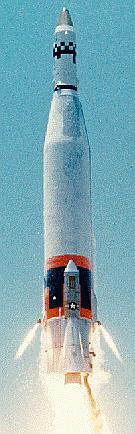

13,968 bytes. 135 x 434 pixels.

Family: Atlas. Country: USA. Status: Hardware. Other Designations: Atlas-Hustler. Department of Defence Designation: LV-3A.

Agena originally called 'Hustler', based on engine for cancelled rocket-propelled nuclear warhead pod for B-58 Hustler bomber.

Specifications

Payload: 800 kg. to a: Geosynchronous transfer trajectory. Liftoff Thrust: 161,848 kgf. Total Mass: 123,990 kg. Core Diameter: 3.1 m. Total Length: 30.0 m.

Stage Number: 0. 1 x Atlas MA-2 Gross Mass: 3,050 kg. Empty Mass: 3,050 kg. Thrust (vac): 154,734 kgf. Isp: 282 sec. Burn time: 135 sec. Isp(sl): 248 sec. Diameter: 4.9 m. Span: 4.9 m. Length: 0.0 m. Propellants: Lox/Kerosene No Engines: 2. XLR-89-5
Stage Number: 1. 1 x Atlas Agena LV-3A Gross Mass: 117,150 kg. Empty Mass: 2,390 kg. Thrust (vac): 37,038 kgf. Isp: 309 sec. Burn time: 330 sec. Isp(sl): 215 sec. Diameter: 3.1 m. Span: 4.9 m. Length: 20.3 m. Propellants: Lox/Kerosene No Engines: 1. XLR-105-5
Stage Number: 2. 1 x Agena A Gross Mass: 3,790 kg. Empty Mass: 885 kg. Thrust (vac): 7,031 kgf. Isp: 276 sec. Burn time: 120 sec. Isp(sl): 0 sec. Diameter: 1.5 m. Span: 1.5 m. Length: 4.7 m. Propellants: Nitric acid/UDMH No Engines: 1. Bell 8048

Atlas LV-3A / Agena A Chronology

1960 Feb 26 - - 17:25 GMT. LV Configuration: Atlas LV-3 s/n 29D / Agena A s/n 1008. Launch Site: Cape Canaveral . Launch Complex: LC14. FAILURE: Second stage failed to separate.

Midas 1 Spacecraft: Midas. Payload: Midas / Agena TV 1008. Mass: 2,025 kg.
Missile Defense Alarm System.

1960 May 24 - - 17:37 GMT. LV Configuration: Atlas s/n 45D / Agena A s/n 1007. Launch Site: Cape Canaveral . Launch Complex: LC14.

Midas 2 Spacecraft: Midas. Payload: Midas / Agena TV 1007. Mass: 2,300 kg.
Missile Defense Alarm System.

1960 Oct 11 - - 20:33 GMT. LV Configuration: Atlas LV-3 s/n 57D / Agena A s/n 2101. Launch Site: Vandenberg . Launch Complex: LC1-1. FAILURE: Second stage failure.

Samos 1 Spacecraft: Samos. Payload: Samos E-1 no. 1. Mass: 1,845 kg.
First generation photo surveillance; radio relay of images; Satellite and Missile Observation Satellite.

1961 Jan 31 - - 20:21 GMT. LV Configuration: Atlas s/n 70D / Agena A s/n 2102. Launch Site: Vandenberg . Launch Complex: LC1-1.

Samos 2 Spacecraft: Samos. Payload: Samos E-1 no. 2. Mass: 1,900 kg.
First generation photo surveillance; radio relay of images; micrometeoroid impact data. Poor results.
Atlas Agena A

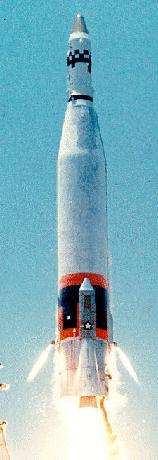

Credit: US Air Force. 13,367 bytes. 158 x 460 pixels.

Bibliography:

45 - Koelle, Heinz Hermann,, Handbook of Astronautical Engineering, McGraw-Hill,New York, 1961.
