astronautix.com Lunokhod LEK
Lunokhod LEK
Lunokhod LEK -

Credit: © Mark Wade. 2,009 bytes. 248 x 155 pixels.

Manufacturer's Designation: Manned Vulkan-launched version. Class: Manned. Type: Lunar rover. Nation: Russia. Manufacturer: Korolev.

Lunar rover for the Lunar Expedition. The rover provided pressurized quarters for 2 crew, allowing trips up to 200 km from the lunar base at a top speed of 5 km/hr. The 2.25 tonne generating station provided 8 kw of solar power to run the motor. Each 12 day trip would use 200 kg of life support consumables.

Specification

Craft.Crew Size: 2. Design Life: 12 days. Total Length: 8.0 m. Maximum Diameter: 4.5 m. Total Habitable Volume: 25.00 m3. Total Mass: 8,200 kg. Electric system: 8.00 total average kW. Electrical System: Solar panels.

Bibliography:

Lunokhod DLBLunokhod DLB

Credit: © Mark Wade. 872 bytes. 166 x 62 pixels.

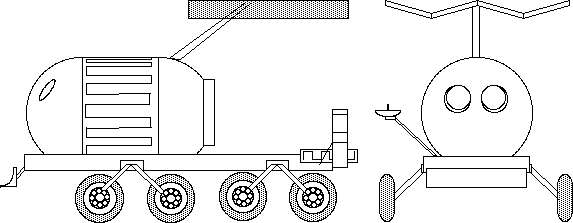

Lunokhod LEKLunokhod LEK

Credit: © Mark Wade. 4,705 bytes. 573 x 223 pixels.
