Aelita-MEK

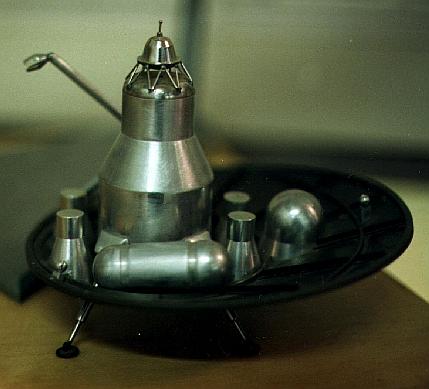

Aelita - MPK - The OKB-1 Aelita Mars spacecraft would be launched into near-Earth orbit using the N1M launch vehicle. The proposed Mars Expeditionary Complex (MEK) included this Mars Landing Craft (MPK) for landing on the Martian surface.

Credit: © Mark Wade. 33,864 bytes. 429 x 389 pixels.

Manufacturer's Designation: Mars Expeditionary Complex. Class: Manned. Type: Mars Expedition. Nation: Russia. Manufacturer: Korolev.

By the beginning of 1969 it was apparent that the moon race had been lost - and NASA was already promoting ambitious plans for a manned Mars expedition as a follow-on to Apollo. The Soviet response was Project Aelita. Three design bureaux, led by chief designers Mishin, Yangel, and Chelomei, began competitive design of manned Mars expeditions.

On 28 May 1969 V Mishin, Korolev's successor as Chief Designer of OKB-1, approved development of the N1M advanced version of the N1 launch vehicle. Feoktistov was tasked with preparing the OKB-1 version of Project Aelita and creating a design that would take advantage of the increased lift of the N1M. This expedition was called the Mars Expeditionary Complex (MEK). The design ground rules for the MEK were:

Crew of six to be sent to Mars and returned over a total mission duration of 630 days
Stay in Mars orbit of 30 days
Landing of three of the crew for five days
Primary spacecraft propulsion to be nuclear-electric with liquid fuel auxiliary engines.

The MEK consisted of:

Mars Orbit Spacecraft (MOK), including crew quarters and basic on-board systems. From aft to fore this consisted of:
- Instrumentation cluster
- Working compartment
- Laboratory compartment
- Biotechnical compartment
- Living compartment
- Crew salon
- Orientation engine section
Mars Landing Craft (MPK) for landing on the Martian surface. The MPK had an open aeroshell for aerodynamic braking with a sophisticated, asymmetrical, high-lift configuration. After separation from the MEK, the MPK would drop its docking apparatus. After aerodynamic deceleration in the Martian atmosphere the MPK's liquid rocket landing engine would brake the spacecraft to a soft landing on the surface. Arranged within the aeroshell were a cylindrical dwelling section, an airlock/transition section, and the ascent stage with its spherical cabin.
Aelita / MEK - Aelita / MEK Manned Mars Expedition
Credit: © Mark Wade. 4,500 bytes. 400 x 70 pixels.
Recovery Apparatus (VA) in which the crew would land on earth after the flight back from Mars. This was an enlarged form of the Soyuz 'headlight' re-entry capsule shape. The VA would have a hypersonic lift to drag ration of 0.45 to minimise G-loads on return. It would have a basic diameter of 4.35 m, a height of 3.15 m, and a lens-shaped base of 6 m diameter.
Energy-engine Section (YaERDU), the nuclear reactor with ion engines. The nuclear electric propulsion developed in 1966-1970 for this purpose could be used in single block (YaE-1 and YaE-1M) and multiple block (YaE-2 and YaE-3) applications. A single Block YaE-1 would have an electrical output of 2,500-3,200 kW with fuel for 4,000 to 8,000 hours of operation. Block YaE-1M would have an output of 5000 kW. Total thrust of the engine would be from 6.2 to 9.5 kgf with a specific impulse of from 5,000 to 8,000 sec. In three block applications, electric capacity would be 3 x 3,200 kW and 3 x 5,000 kW.

Aelita Mars Exped. - Aelita Mars Expedition

Credit: © Mark Wade. 12,428 bytes. 388 x 179 pixels.

The 150 tonne MEK would be assembled in two launches of the N1M. The first launch would put the MOK and MPK in to low earth orbit. The second would place the YaERDU into a nearby orbit, after which it would automatically dock with the MOK /MPK section. Still unmanned, the MEK would begin its slow acceleration spiral away from the Earth. After the MEK had cleared the Earth's radiation belts, the crew would be launched aboard a Soyuz 7K-L1 / Block D complex by a Proton booster. The Soyuz would rendezvous and dock with the MEK in high earth orbit.

Aelita Mars Ship - Aelita Mars Spacecraft

Credit: © Mark Wade. 1,084 bytes. 399 x 57 pixels.

The MEK would continue to slowly accelerate until it reached earth escape velocity. The crew would have plenty of time to fully check out the systems and abandon ship in their Soyuz lifeboat if any problems developed before Earth escape. After reaching Mars trajectory velocity, the ion engines would shut down and the nuclear reactor would go into a low power coast / spacecraft power generation mode. After 135 days of coasting flight, the engines would begin operating again, taking 61 days to brake into a high Mars orbit and then a further 24 days to spiral into a low polar Mars orbit.

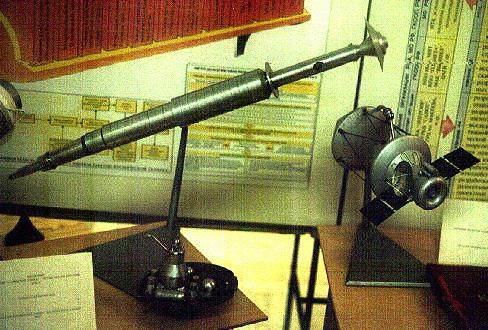

Aelita - MEK - On the left, the OKB-1 Aelita Mars spacecraft that would be launched into near-Earth orbit using the N1M launch vehicle.

Credit: © Mark Wade. 50,376 bytes. 488 x 330 pixels.

After a week of reconnaissance from orbit, three of the crew would enter the MPK and head for the selected landing site on the Martian surface. Following completion of a week's surface studies, the crew would be boosted into Martian orbit by the MPK ascent stage, and then automatically rendezvous and dock with the MOK. After a further period of studies from orbit, the MEK's ion engines would be restarted and the acceleration spiral away from Mars would begin. It would take 17 days to escape Mars, and the engine would accelerate the MOK for another 66 days until it was placed on a fast Earth return orbit, passing between the orbits of Venus and Mercury. The engine would be restarted for a 17-day brake manoeuvre at perihelion to reduce approach speed with the earth. After a short coast, the engine would be restarted a final time to brake the complex prior to the separation of the VA landing capsule for return to the Earth of the crew and their Martian samples.

Soviet cosmonaut - Soviet cosmonaut becomes first to step on Martian surface from MPK landing craft.

Credit: © Mark Wade. 14,196 bytes. 217 x 161 pixels.

From fore to aft, the MEK consisted of:

The MPK Mars landing craft
MOK Mars orbital craft
Aggregate section, for docking of Soyuz 7K-L1, the VA earth-return capsule, and the MPK after ascent from the Martian surface
Radiation shield, screening the crewed compartments from the reactor
Long two-section telescoping thermionic radiator section
Engine propellant tank
Engine block
Liquid lithium reactor cooling system
Two block YaE-2 engine assembly

Aelita Ascent Stage

Credit: RKK Energia. 22,276 bytes. 310 x 238 pixels.

By the end of 1969 Mishin and Yangel dropped out of the competition. At OKB-1 it was felt that a more gradual approach would be more in keeping with state resources. First the N1 launch vehicle, as yet unproven, had to be fully developed. Then the TMK should be thoroughly tested and developed in Earth Orbit. This could be followed by a simple Mars fly by expedition. The MEK or its successor would be left for the next Century.

Aelita

Credit: RKK Energia. 14,267 bytes. 340 x 237 pixels.

Specification

Bibliography:

89 - Semenov, Yu. P., S P Korolev Space Corporation Energia, RKK Energia, 1994.
193 - Placard, TsNIIMASH Museum, .
206 - Krasnikov, Aleksandr, Russian Space History Web Site, "Pilotiruemiy polyot na Mars - chetvert veka nazad", . HTML when accessed: http://www.aha.ru/~kai/spaceflt/index.html

Aelita Lander - Aelita Lander on Mars

Credit: RKK Energia. 25,982 bytes. 307 x 237 pixels.

Aelita Martian

Credit: RKK Energia. 23,027 bytes. 311 x 239 pixels.
